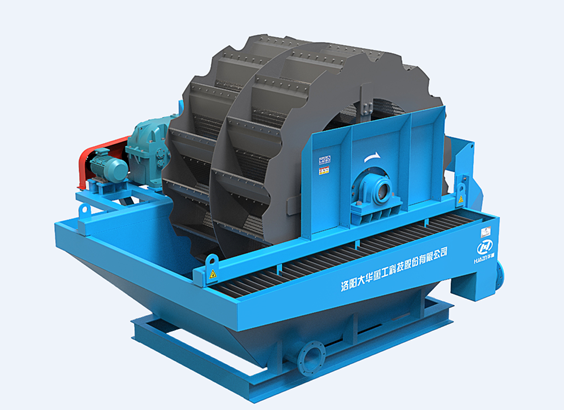

DXS Bucket-wheel Type Sand Washer

DXS Sand Washing Machine

Wheel Diameter: 2800-3800（mm）

Wheel Width: 1.07-1.235（mm）

Processing Capacity: 20-350（t/h）

Applied Material: fine and coarse grain

Application Fields: buliding, construction, road, hydropowe.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

Sand washing machine, also known as sand washer, is the commonly used equipment in artificial sand making production line. It is used to remove the dirt and impurities in sand for sand washing,classifying and grading to meet the standard.

We have bucket wheel type and screw type sand washing machine for sale. Our sand washing machine has win the favor of the customers in Nigeria, Zambia, Kenya, Ethiopia, Tanzania, Saudi Arabia, etc.

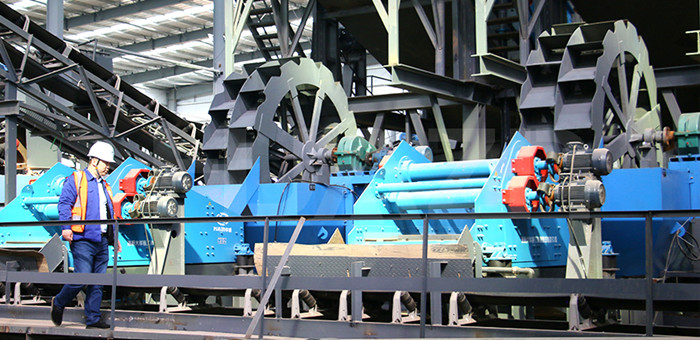

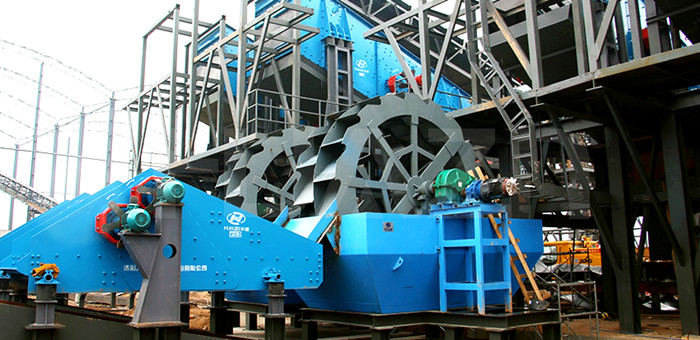

Application of Sand Washing Machine

1.For buliding, construction, road, etc.

2.For sand washing, grading, classifying.

3.Hot sale capacity:10-20t/h, 60-100t/h, 150-200t/h, 200-300t/h, etc.

Sand washing machine is widely used to for kinds of sands washing and grading, such as silica sand, artificial sand, quartz sand, river sand, yellow sand, sea sand, etc.

Features

1. Smart structure, the gearing of bucket-wheel is above the water avoid destruction of water and sand mud.

2. Rotation of sand washer is stable,It can be controlled by adjustment of fine sand and stone powder loss, which reach good performance.

3. High quality of sand, high capacity, low consumption of power, and convenient maintenance.

4. Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.

Working Principle

Materials are fed evenly from the feeding box. Fill the buddle with certain amount of water continuously. The driving unit drives the helical shaft run at the certain speed, which will force the materials to overturn and roll in the buddle and move towards the discharge end. The fine grains of materials and impurity will be drain out through the overflow weir, while the coarse grains will be discharged through the discharge outlet. In this way, materials can be washed, classified, purified and dehydrated.

Parameter

Type	Wheel Diameter（mm）	Wheel Width（mm）	Wheel Speed（r/min）	Capacity（t/h）	Power（kw）	Dimension（mm）
DXS2.8	2800	880	1.235	20-50	7.5	3875×2550×2910
DXS3.2	3200	880	1.217	100-150	11	4547×3069×3400
DXS3.6	3600	1200	1.09	130-190	15	4982×4146×3800
DXS3.8	3800	1600	1.07	150-220	22	4978×5440×3798
DXS3.8/3	3800	2400	1.09	250-350	37	4978×5440×3798
