Rod Mill
Description
Based on the traditional technology in China, GMBZ Series high efficiency and energy saving Rod Mill is the new type of product with optimized and developed design. Instead of the traditional bearing support, rod mill adopts the advanced rolling bearing support, which decreases the running resistance, reduces the energy consumption by10-20% and improves the capacity by over 20%. It applies the dry oil lubrication instead of the original thin oil lubrication, which saves the oil consumption by over 70%. Also there is no need the high-low pressure lubricating station for the large type of mill, which reduces the investment cost. It is widely used in sand making in the large type of aggregate system and adjusting the fineness modulus of sand, also for grinding all kinds of mineral rock in the metal and nonmetal mines and building materials, coal and other industries. There are two discharging ways for the rod mill: surrounding discharging and center discharging.
Features
1. Discharge forms are all centeral discharge except for "GMBZ" series, and feed from hoppers.
2. The layout of equipment can be customized according to the demands of users and non-standard design and manufacture is also acceptable.
3. The rod mill crusher material handling capacity is large, and continuous rod mill operation can be carried out. Moreover, the rod mill efficiency is high and the stability is strong.
4. The products grinded by the rod mill crusher have fine particle size and high uniformity, which can meet the production needs of different enterprises.
Parameter
| Model | Barrel Size (mm) | Barrel Volume(m3) | Rod Load (t) | Speed(r/min) | Power | Outlet Size | Capacity |
| Dia. × Length | (mm) | (t/h) | |||||
| GMB1535 | φ1500×3500 | 5.9 | 8 | 23 | 90 | 2.5-0.2 | 15-6 |
| GMB1835 | φ1800×3500 | 7.9 | 13 | 22.8 | 160 | 2.5-0.2 | 25-10 |
| GMB2130 | φ2100×3000 | 9.2 | 17 | 20.9 | 180 | 2.5-0.2 | 32-13 |
| GMB2136 | φ2100×3600 | 11 | 18 | 20.9 | 210 | 5-0.8 | 38-15 |
| GMB2140 | φ2100×4000 | 12.2 | 19 | 20.9 | 220 | 5-0.8 | 43-17 |
| GMB2145 | φ2100×4500 | 13.8 | 20 | 20.9 | 250 | 5-0.8 | 49-20 |
| GMB2442 | φ2400×4200 | 17 | 21 | 19 | 355 | 5-0.8 | 58-24 |
| GMBZ2445 | φ2400×4500 | 18.2 | 23 | 19 | 355 | 5-0.8 | 63-27 |
| GMB2736 | φ2700×3600 | 18.4 | 24 | 17.5 | 400 | 5-0.8 | 82-33 |
| GMBZ2745 | φ2700×4500 | 22.4 | 27 | 17.5 | 500 | 5-0.8 | 90-36 |
| GMB3245 | φ3200×4500 | 32.8 | 50 | 16.5 | 800 | 5-0.8 | 185-70 |

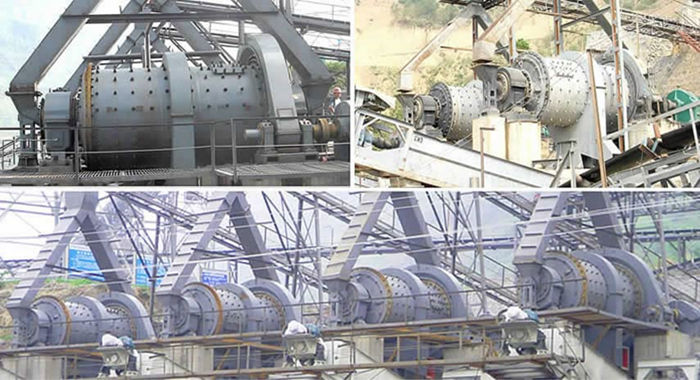

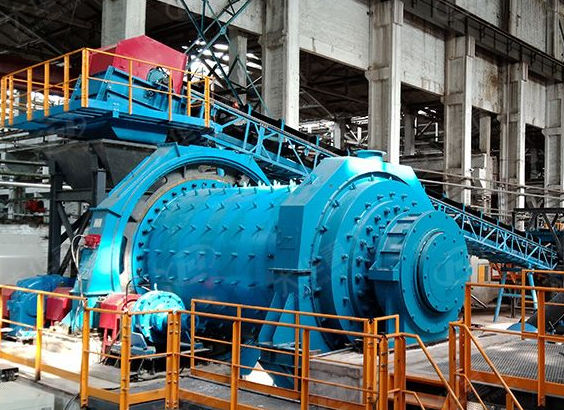

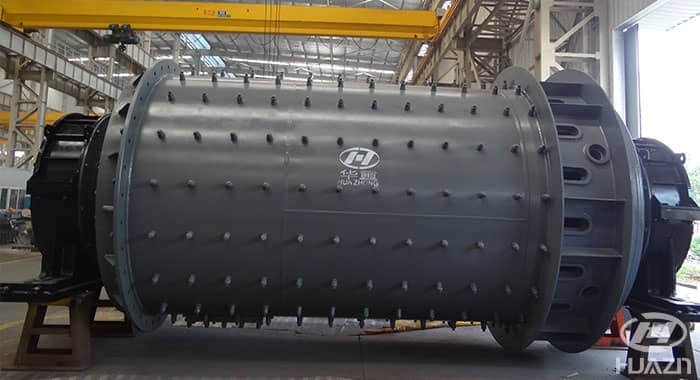

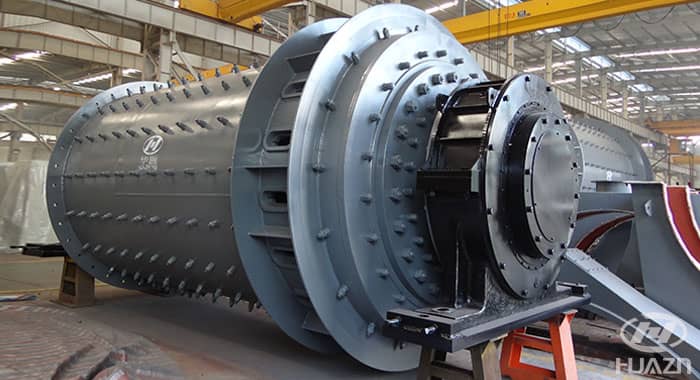

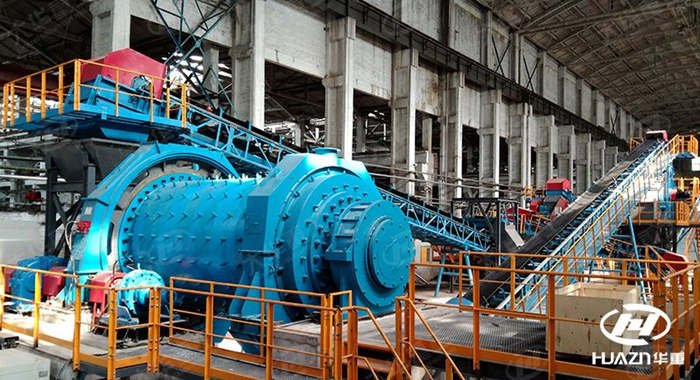

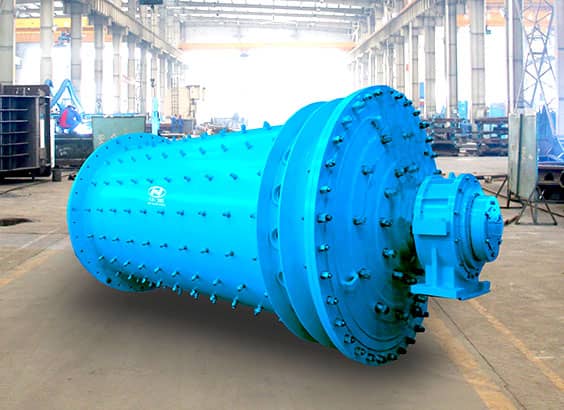

Machine Photo
Customer Cases
150,000t/y Steel Slag Production Line EPC Project in Hebei Province
Main Equipment: PEY series steel slag hydraulic type jaw crusher; GMBZ series steel slag high-efficiency and energy-saving rod mill; 2YKR series vibrating screen and steel slag magnetic separator,etc.

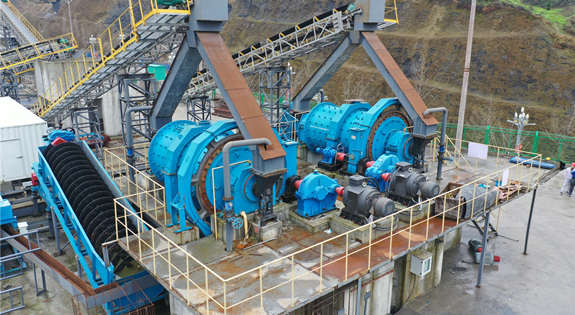

570t/h Sand and Limstone Processing Line at Sichuan Province
Main Equipment:PLS vertical shaft impact crusher, PFQ impact crusher, GMBZ rod mill, ZKR linear vibrating screen, YKR vibrating screen, spiral classifier, etc.
