Energy-efficient Ball Mill

Ball Mill

Ball Load: 8-94 (T)

Discharge Size: 0.8-5 (mm)

Application Fields: nonferrous metal mining, non metal mine, construction material, power, transportation, light industry.

Applied Material: ore, rock and artificial aggregates

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

Ball mill is widely used in black, non-ferrous metal mining, non-metallic mining, building materials, chemicals, electricity, coal, transportation, light industry and other industrial sectors. Our high-efficiency and saving-energy ball mill adopts rolling bearing substituting for sliding bearing, which can save energy 10-20% compared with sliding bearing. Adopting oil grease in place of thin oil lubrication station, and large-type mill needs not to be equipped with high-and-low pressure lubrication station with high cost.

Features

1. Grate ball mill is equipped with grid plate which has a high ball load on its discharge end. It has a larger installed power to ensure a high productivity, and its characteristic of rough discharge granularity locates its scope of rough grinding.

2. Overflow ball mill is equipped with no grid plate which determines a low ball load, lower power and productivity, suitable for secondary fine grinding due to its fine granularity feature.

Parameter

Wet Grid Ball Mill
Model	Barrel Size (mm)	Bareel Volume(m³⁾	Ball Load(t)	Barrel Speed(r/min)	Power (kw)	Outlet Size	Capacity
Model	Dia. X Length	Bareel Volume(m³⁾	Ball Load(t)	Barrel Speed(r/min)	Power (kw)	(mm)	(t/h)
GMQG1530	1500*3000	4	8	27.6	75	0.8-0.074	12-2.8
GMQG1535	1500*3500	4.6	11	27.6	75-90	0.8-0.074	14-3.4
GMQG1830	1800*3000	6.5	13	25.3	132	0.8-0.074	21-4.8
GMQG1835	1800*3800	7.58	16	25.3	160	0.8-0.074	25-5.8
GMQG1840	1800*4000	8.65	17.3	25.3	185	0.8-0.074	28-6.6
GMQG1845	1800*4500	9.75	19.5	25.3	210	0.8-0.074	31-7.2
GMQG2122	2100*2200	6.7	14.7	23.8	160	0.8-0.074	24-5.3
GMQG2130	2100*3000	9.2	17	23.8	185	0.8-0.074	26-6.0
GMQG2136	2011*3600	11	19	23.8	210	0.8-0.074	29-6.5
GMQG2140	2100*4000	12.2	20.5	23.8	220	0.8-0.074	32-7.2
GMQG2145	2100*4500	13.8	22	23.8	250	0.8-0.074	36-8.1
GMQG2424	2400*2400	9.8	20	22.8	220	0.8-0.074	32-6.6
GMQG2430	2400*3000	12.2	25	22.8	250	0.8-0.074	38-7.5
GMQG2436	2400*3600	14.6	30	22.8	280	0.8-0.074	42-8.5
GMQG2440	2400*4000	16.2	33	22.8	355	0.8-0.074	47-9.5
GMQG2445	2400*4500	18.2	37	22.8	400	0.8-0.074	55-10.5
GMQG2721	2700*2100	10.7	24	21.7	280	3.0-0.074	84-8.5
GMQG2727	2700*2700	13.8	29	21.7	315	3.0-0.074	105-9.0
GMQG2730	2700*3000	15.3	32.5	21.7	355	3.0-0.074	120-10
GMQG2736	2700*3600	18.4	39	21.7	400	3.0-0.074	145-12
GMQG2740	2700*4000	20.5	43	21.7	450	3.0-0.074	159-13
GMQG2745	2700*4500	23	50	21.7	500	3.0-0.074	180-15
GMQG3231	3200*3100	22.65	46.9	18.6	500	3.0-0.074	182-16
GMQG3236	3200*3600	26.2	52	18.6	560	3.0-0.074	190-19
GMQG3240	3200*4000	29.2	57	18.6	630	3.0-0.074	210-22
GMQG3245	3200*4500	32.8	65	18.6	710-800	3.0-0.074	235-29
GMQG3254	3200*5400	39.2	81.6	18.6	800-1000	3.0-0.074	280-35
GMQG3640	3600*4000	35.6	75	17.3	800	3.0-0.074	230-25
GMQG3645	3600*4500	40.8	88	17.3	1000	3.0-0.074	259-29
GMQG3650	3600*5000	45.3	96	17.3	1120	3.0-0.074	288-35
GMQG3660	3600*6000	54.4	117	17.3	1250-1500	3.0-0.074	310-38
GMQG3685	3600*8500	79	144	17.3	1800	3.0-0.074	450-50
Wet Overflow Ball Mill
Model	Barrel Size (mm)	Barrel Volume(m³⁾	Ball Load (t)	Speed(r/min)	Power	Outlet Size	Capacity
Model	Dia. × Length	Barrel Volume(m³⁾	Ball Load (t)	Speed(r/min)	Power	(mm)	(t/h)
GMQY1530	1500×3000	4	8.4	27.6	75	0.8-0.074	11-2.6
GMQY1535	1500×3500	4.6	10	27.6	75-90	0.8-0.074	13.2-3.0
GMQY1830	1800×3000	6.5	12	25.3	110-132	0.8-0.074	20-4.5
GMQY1835	1800×3500	7.58	15	25.3	132-160	0.8-0.074	23-5.0
GMQY1840	1800×4000	8.65	16	25.3	160-185	0.8-0.074	25-6.0
GMQY1845	1800×4500	9.75	18	25.3	185-210	0.8-0.074	28-6.8
GMQY2122	2100×2200	6.7	14.7	23.8	160	0.8-0.074	22-5.0
GMQY2130	2100×3000	9.2	17	23.8	185	0.8-0.074	25-5.8
GMQY2136	2100×3600	11	19	23.8	210	0.8-0.074	28-6.0
GMQY2140	2100×4000	12.2	20.5	23.8	220	0.8-0.074	30-7.0
GMQY2145	2100×4500	13.8	22	23.8	250	0.8-0.074	34-8.0
GMQY2424	2400×2400	9.8	18.8	22.8	210	0.8-0.074	30-6.2
GMQY2430	2400×3000	12.2	23	22.8	250	0.8-0.074	34-6.6
GMQY2436	2400×3600	14.6	25	22.8	280	0.8-0.074	40.5-7.9
GMQY2440	2400×4000	16.2	28	22.8	315	0.8-0.074	45-8.7
GMQY2445	2400×4500	18.2	31	22.8	355	0.8-0.074	50-9.8
GMQY2721	2700×2100	10.7	20	21.7	280	3.0-0.074	76-6.0
GMQY2727	2700×2700	13.8	25.5	21.7	315	3.0-0.074	98-7.8
GMQY2730	2700×3000	15.3	28	21.7	355	3.0-0.074	108-8.8
GMQY2736	2700×3600	18.4	34	21.7	355-400	3.0-0.074	130-10.5
GMQY2740	2700×4000	20.5	37	21.7	400-450	3.0-0.074	144-11.5
GMQY2745	2700×4500	23	42.5	21.7	500	3.0-0.074	180-13
GMQY3231	3200×3100	22.65	22.65	18.6	450	3.0-0.074	164-14.4
GMQY3236	3200×3600	26.2	26.2	18.6	500	3.0-0.074	171-17.1
GMQY3240	3200×4000	29.2	29.2	18.6	560	3.0-0.074	190-20
GMQY3245	3200×4500	32.8	61	18.6	630	3.0-0.074	228-22
GMQY3254	3200×5400	39.3	73	18.6	710	3.0-0.074	270-26
GMQY3640	3600×4000	35.6	67	17.3	710	3.0-0.074	210-20
GMQY3645	3600×4500	40.8	76	17.3	800-1000	3.0-0.074	233-26
GMQY3650	3600×5000	45.3	86	17.3	1120	3.0-0.074	260-31.5
GMQY3660	3600×6000	54.4	102	17.3	1250	3.0-0.074	280-34
GMQY3685	3600×8500	79	131	17.3	1500	3.0-0.074	400-45

Customer Cases

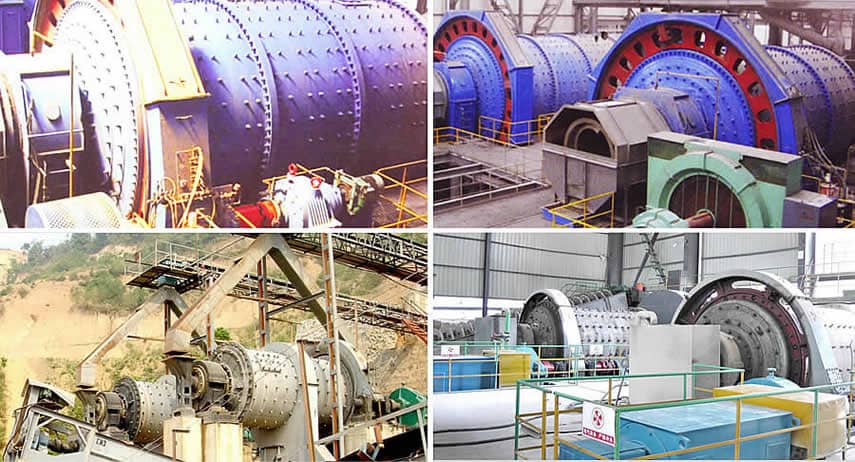

Energy-efficient Ball Mill Application
