Sand Making Machine

Max. Feed Size: 30-60 mm

Processing Capacity: 24-1000TPH

Output Size: 0-5 mm

Applied Materials: Granite, quartz, basalt, pebble, limestone, dolomite, etc.

Application Fields: water conservancy, refractory material, construction, highway, railway, etc.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

PDF View

Tel.: +86-379-62669995E-Mail: lydhcrusher@huazn.com

Description

Sand making machine is widely used to process quartz, sandstone, pebble, limestone, basalt and other stones into sand. It is the key equipment for artificial sand making as to provide high quality sand aggregate for building, highway, construction, concrete batching plant, etc.

Our sand making machine is manufactured on the foudation of decades-long production experience and introduction of advanced technology, featured with deep chamber rotating design, high crushing rate, oil lubrication, etc.

Application of Sand Making Machine

1.For processing rocks, river stone, gravel, granite, etc.

2.Common final output size:0-5mm, 5-10mm, etc.

3.Hot sale capacity:10-20t/h, 60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, etc.

★Huazn has small, medium and large sand making machine for sale, various types, full models, meeting different needs. Get a customized solution for yourself!

Features

1.Competitive price(factory-direct sale), quality guarantee, fast shipment

2.High crushing efficiency, adjustable final size, reliable performance, easy maintenance.

3.High quality spare parts, long lifetime, full service system.

4.Higher accuracy of manufacture makes the anti-unbalanced ability of the impeller better.

Working Principle

Stone Beat Stone: The materials fall vertically and uniformly from the top of the machine. One part of them enter into the revolving impeller at high speed through the distributor and feed pipe, and are shoot out from the discharge outlet of impeller by the action of the high-speed centrifugal force. Then at high speed they are smashed with another part of the materials that have been distributed around impeller through the distributor. After smashing each other the materials shall form whirlpool and impact many times caused by striking and attrition in the impeller and crushing chamber.

Stone Beat Iron: The materials fall vertically and uniformly from the top of the machine, and enter into the revolving impeller at high speed through the feed pipe. Then they are shot out from the discharge outlets of impeller by the action of the high-speed centrifugal force, and at high speed strike and crush with impact plate around the impeller.

Parameter

Model	Working Mode	Max. Feed Size(mm)	Impeller Diameter(mm)	Impeller Speed (r/min)	Power (kW)	Capacity(t/h)
PLS-550	Sand Making	30	570	2258-2600	30	24-35
					37	30-45
					45	42-60
PLS-700	Sand Making	35	720	1775-1965	55	50-68
					75	64-85
					90	50-65
					110	94-120
PLS-850Ⅱ	Sand Making	50	880	1320-1720	2×90	153-195
					2×110	187-242
					2×132	225-290
					2×160	270-345
	Fine Crushing	5	880	1795	2×110	120-175
					2×132	150-210
PLS-1000Ⅱ	Sand Making	60	990	1240-1460	2×160	270-375
					2×200	340-470
					2×220	375-520
					2×250	425-585
	Fine Crushing	5	990	1545	2×160	180-256
					2×220	250-350
PLS-1200Ⅱ	Sand Making	60	1110	1040-1300	2×250	430-600
					2×280	450-640
					2×315	500-715
	Fine Crushing	5	1110	1400	2×250	300-400
					2×280	350-450
PLS-1400Ⅱ	Sand Making	60	1400	820-1020	2×450	765-1000
					2×500	850-1100
	Fine Crushing	5	1400	1100	2×450	620-720
					2×500	700-800

Note: 1. The linear speed in the sand making mode is 70m/s, the lower limit of the throughput is the impeller full load without diversion, and the upper limit is the impeller full load + 30%

diversion.

2. The linear speed in the fine crushing and shaping mode is 80m/s.

Structure

PLS vertical impact crusher

Machine Photo

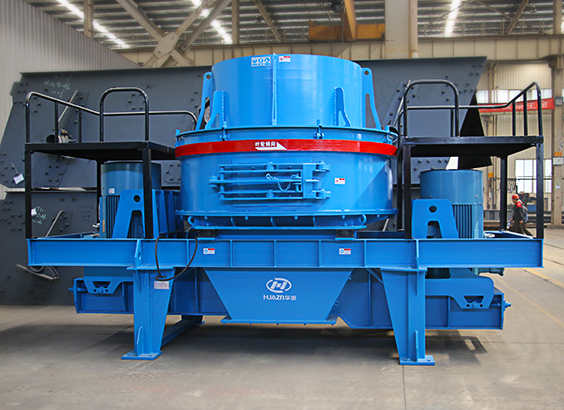

pls vertical impact crusher 1

pls vertical impact crusher 2

sand maker

sand making machine

Customer Cases

PLS vertical impact crusher application 1

300t/h Sand and stone production line of Don Sahong hydropower station in Laos.

The main equipment: ZSW4911 vibrating feeder, ISP1310 impact crusher, C1008 jaw crusher, GPY200S cone crusher, PLS1000 vertical impact crusher, 3YK2160 vibrating screen.

PLS vertical impact crusher application 2

400t/h Sand and stone production line for Dam at Xinjiang.

The main equipment: ZSW1560 vibrating feeder, ASD4836 jaw crusher, GPY300S cone crusher, HPY300 cone crusher, PLS1000Ⅱ vertical impact crusher, 2YKRH2460 vibrating screen.
