Stone Crusher

Feeding Size: ≤1360mm

Processing Capacity: 7-1500t/h

Output Size: 0-40mm, 40-300mm for 120 kinds of stones

Model: small, medium and large models are in stock available

Processing Materials: limestone, granite, gravel, aggregate, rock, basalt, quartz, etc

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

The Hot-sale Models and Capacity of Stone Jaw Crusher

1-30t/h, 60-80t/h, 80-100t/h, 100-150t/h, 200-400t/h, etc. are the hot-sale production capacity of jaw crusher. DHKS400×600, DHKS600×900, DHKS900×1200, DHKS1600*2000 are the hot-sale models.The fineness of the finished products are including different sizes and other specifications to meet your different needs.

Different types will be chosen according to your requirement such as the capacity, materials, input size, output size, and the cost. Small, medium and large-sized models can be chosen by you, so tell us your needs, and then our technical people will prepare the latest quotation and price list for you asap.

★The hot sale stone crusher model includes DHKS 400*600 jaw crusher, DHKS600*900 jaw crusher, PFQ 1110 impact crusher, PFQ 1315 impact crusher, HPY 300 hydraulic cone crusher,HPY500 hydraulic cone crusher, mobile jaw crusher, etc.

Features

1. To apply special waveform alloy jaw plate, so that the final size is granularity ,high efficiency and long life time of jaw plate.

2. Compared with traditional jaw crusher, the crushing cavity is deeper, which achieves the obvious advantages of big crushing ratio and big capacity.

3. DHKS series jaw crusher applies the strong swing structure of swing jaw and small tooth angle tip, which can be used to crush various hard rock, ore, especially the cobble.

4. Simple discharging adjustment, convenient operation and maintenance, stable running, convenient installation, low operation cost.

Working Principle

When Stone jaw crusher works, electrical motor drives the belt wheel to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Parameter

Price List of Stone Jaw Crusher

The price list depends on specific stone crusher types and models. As the leading manufacturer and exporter in China, we will provide maximum preferential factory price and discount for you. Our jaw crusher has been exported to Philippines, Malaysia, France, Japan, South Africa, Kenya, Nigeria, Ethiopia, Zambia, Namibia, Somalia, Nepal, Pakistan, Saudi Arabic and over 90 countries around the world.

Specification	Feed Opening Size(mm)	Max. Feed Size(mm)	Discharge Opening Size(mm)	Capacity(t/h)	Power(kW)
DHKS1610	400×250	210	20-80	7-23	15
DHKS2416	600×400	340	40-100	25-64	30
DHKS3020	750×480	400	50-120	60-120	55
DHKS3624	920×600	510	65-130	88-170	75
DHKS4230	1060×750	640	65-200	90-310	110
DHKS4836	1220×910	770	90-250	200-500	160
DHKS5112	1300×300	240	20-90	18-110	75
DHKS6016	1500×400	320	25-90	60-200	90

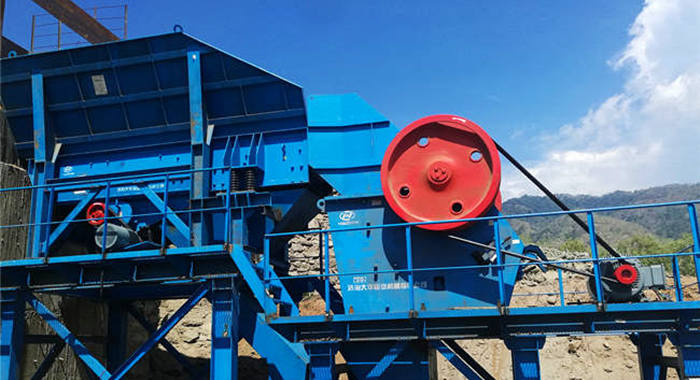

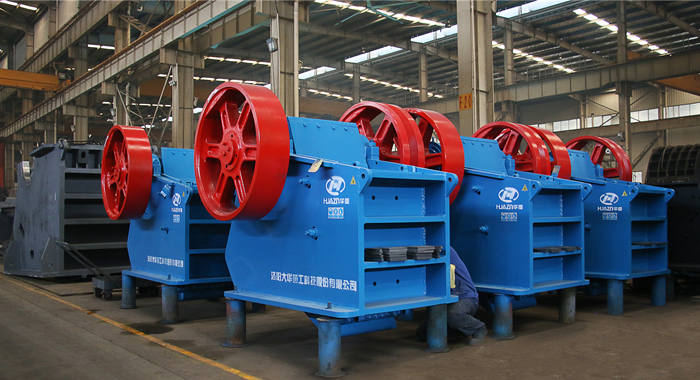

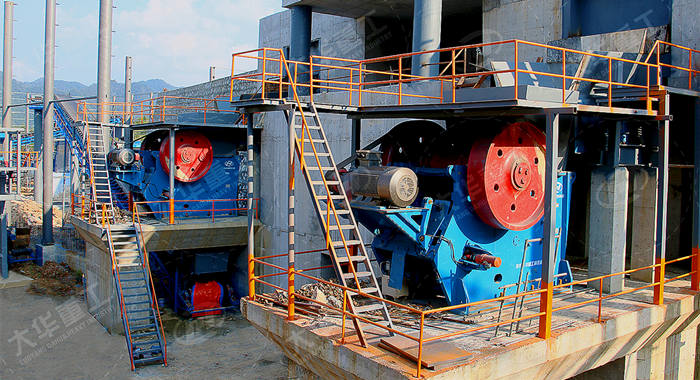

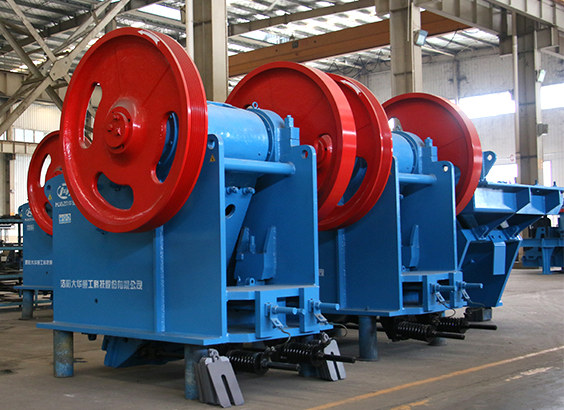

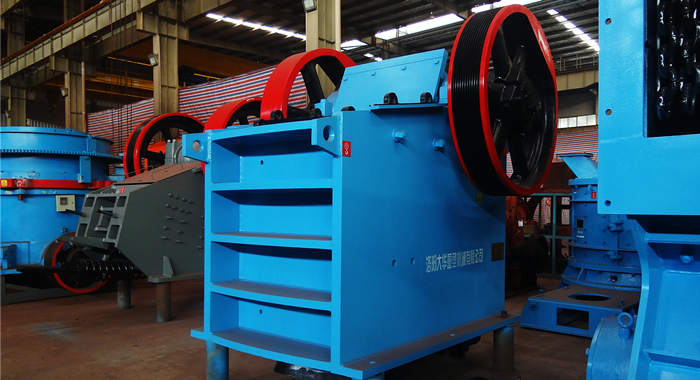

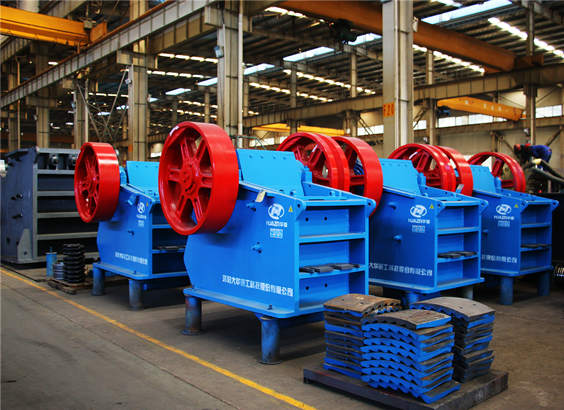

Machine Photo

stone crusher machine

stone crusher price

stone jaw crusher

stone crusher plant

Customer Cases

2000t/h Limestone Production at Mengzi Country, Yunnan Province

The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
