JC Series Jaw Crusher

Max. Feed Size: 0-1300 (mm)

Processing Capacity: 50-2000 TPH

Applied Material: Granite, marble, basalt, limestone, quartz, pebble, ore, etc.

Application Fields: metallurgy, mining, chemical, cement, construction, etc.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

The JC series Jaw Crusher is a new type of jaw crusher with optimized and developed design on structure, material selection, manufacture process and assembly, which is based on absorbing the international advanced technology and applying company's decades design concept and technology of jaw crusher. With the features of smart structure and excellent performance, JC jaw crusher is suitable for crushing all kinds of hard and abrasive rock and mineral ore. In order to meet the needs of different working conditions from the customers, JC jaw crusher can apply modular bolt connecting frame without welding.

Application of Jaw Crushers

1.For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

2.Common final output size:20-50mm, 60-80mm, 80-100mm, 100-150mm, etc.

3.Hot sale capacity: 60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, 600-800t/h etc.

★Huazn manufactures 50-1400TPH coarse jaw crusher and fine jaw crusher in stationary type or mobile type.

Features

1. The structure design is suitable for crushing different kinds of minerals.

2. Optimal design of kinematics parameter and crushing chamber increase processing capacity and crushing performance.

3. The wedge adjustment for CSS achieves infinite adjustment, which is quick and convenient.

4. The bearing design ensures the big loading capacity and reliable operation of jaw crusher.

5. The design of toggle plate increases the stroke of lower chamber and processing capacity.

6. The integrated design of the motor base together with the main frame saves the installation space.

7. In order to increase JC jaw crusher crushing performance, various jaw plate tooth-shapes are suitable for different crushing materials.

Working Principle

When JC jaw crusher works, electrical motor drives the belt wheel to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Parameter

Model	Feed Opening Size(mm)	Max. Feed Size（mm）	Discharge Opening Size（mm）/Capacity（t/h）															Power（kw）
			40	50	60	70	80	90	100	125	150	175	200	225	250	275	300
JC80	800×510	430	50	55	80	90	110	120	135	170	200	240						75
			70	85	100	125	145	170	185	240	280	330
JC90	900×600	500		80	100	120	140	160	180	210	260	300						90
				110	120	140	170	200	220	280	330	360
JC100	1000×760	640				130	160	180	200	235	280	330	390					110
						190	200	225	250	310	370	420	520
JC110	1100×850	720				180	200	220	245	300	350	400	460					110
						240	265	295	320	385	455	520	590
JC125	1250×950	810							270	325	385	445	500	560	620			160
									360	430	505	580	650	725	800
JC130	1250×1100	940							330	360	440	500	555	600	670	730		185
									400	450	530	610	700	780	850	900
JC140	1400×1070	910								380	465	530	580	650	710	760		200
										470	555	640	725	815	900	985
JC160	1600×1200	1020									490	550	635	710	780	855	930	250
											640	730	825	920	1010	1105	1200
JC1613	1600×1300	1110									530	600	680	750	850	910	960	315
											680	760	870	960	1100	1200	1300
JC2012	2000×1200	1020									600	670	750	830	950	1050	1150	355
											730	900	1030	1150	1220	1300	1400
JC180	1800×1500	1300										700	810	930	1000	1080	1200	355
												1000	1150	1300	1450	1600	1800
JC200	2000×1500	1300										750	850	960	1050	1150	1300	400
												1100	1280	1500	1650	1850	2000

Remarks:
1.The capacity listed from the table is the corresponding parameters to crush the rock with the loose density of 1.6t/m³ (a feed material with an average specific gravity of 2.7t/m³).
2.The processing capacity shall be changed according to the different materials and different feeding.
3.The CSS refers to Closed Side Setting. The measuring method will be decided by the tooth profile of the jaw plates.

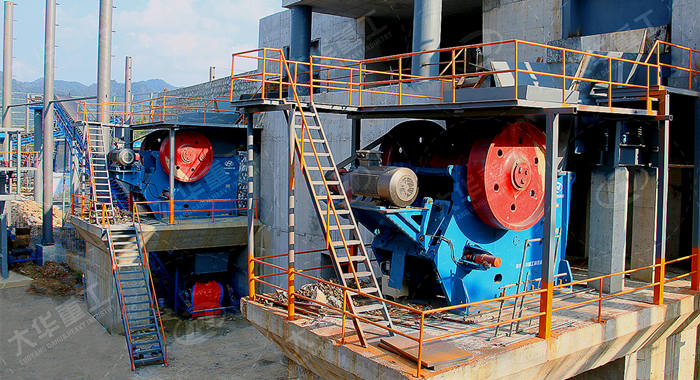

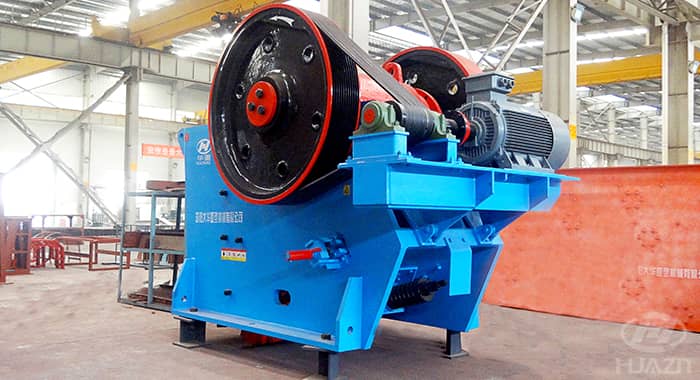

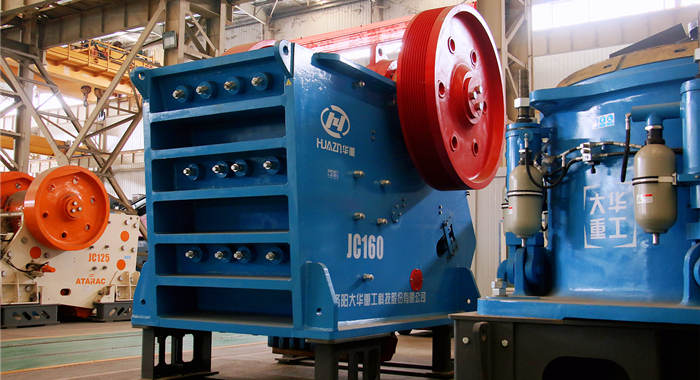

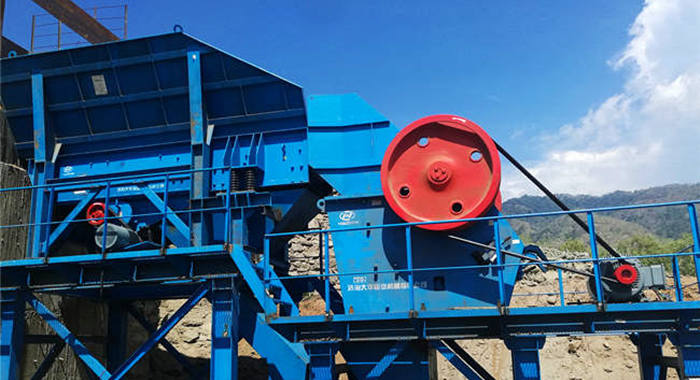

Machine Photo

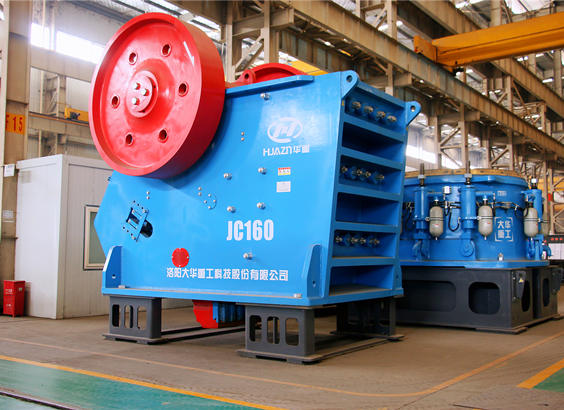

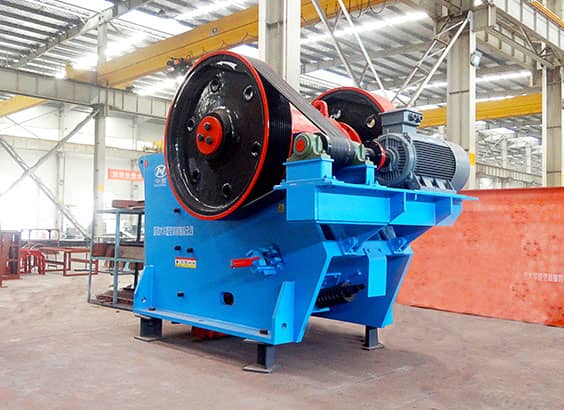

JC jaw crusher

jc jaw crusher 2

jaw crusher machine

jaw crusher price

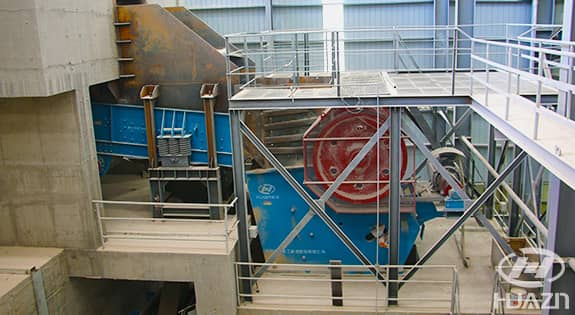

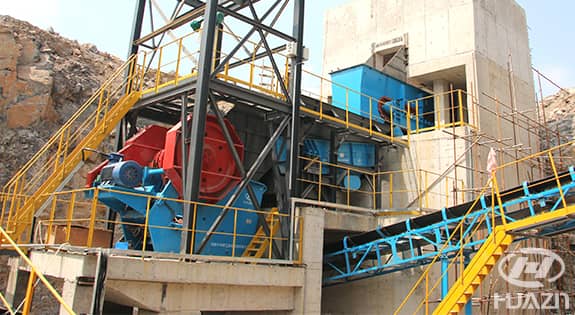

Customer Cases

2000t/h Limestone Production at Mengzi Country, Yunnan Province

The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
