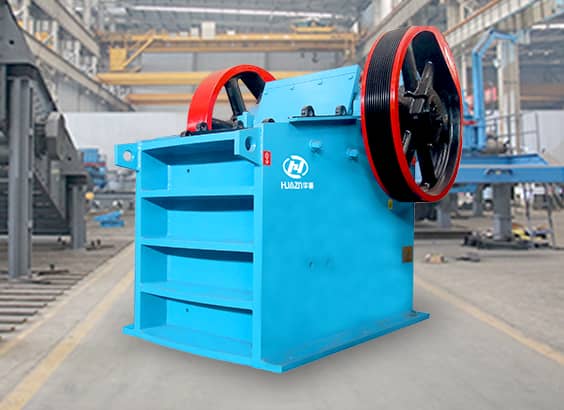

DHKS Series Jaw Crusher

Processing Capacity: 7-500t/h

Max. Feed Size: 210-640(mm)

Hot Models:DHKS 250*400, DHKS 400*600,DHKS 600*920, DHKS 750*1060

Applied Material: 200 kinds of stones

Application Fields: mining, construction, metallurgy, cement, chemical industry

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

Taken advantage of international advanced technology, DHKS Series Jaw Crusher is designed and developed by our company. DHKS jaw crusher is the substitute product of traditional jaw crusher. The structure frame is welded, strong and reliable. And it features as crushing efficiency, durability, easy installation and maintenance, and it has been popular with the customers, it is widely used in primary crushing for many industries such as the mining fields , building materials, construction and metallurgy.

The Hot-sale Models and Capacity of Jaw Crusher

1-30t/h, 60-80t/h, 80-100t/h, 100-150t/h, 200-400t/h, etc. are the hot-sale production capacity of jaw crusher

DHKS250*400，DHKS 400×600, DHKS600×920, DHKS750*1060, DHKS300×1300 are the hot-sale models.The fineness of the finished products are including 0-10mm, 10-20mm, 20-30mm and other specifications to meet your different needs.

★We have small, medium and large DHKS jaw crusher for sale, used for primary secondary fine crushing, meeting different needs.

Features

1. To apply special waveform alloy jaw plate, so that the final size is granularity ,high efficiency and long life time of jaw plate.

2. Compared with traditional jaw crusher, the crushing cavity is deeper, which achieves the obvious advantages of big crushing ratio and big capacity.

3. DHKS series jaw crusher applies the strong swing structure of swing jaw and small tooth angle tip, which can be used to crush various hard rock, ore, especially the cobble.

4. Simple discharging adjustment, convenient operation and maintenance, stable running, convenient installation, low operation cost.

Parameter

Specification	Feed Opening Size(mm)	Max. Feed Size(mm)	Discharge Opening Size(mm)	Capacity(t/h)	Power(kW)
DHKS1610	400×250	210	20-80	7-23	15
DHKS2416	600×400	340	40-100	25-64	30
DHKS3020	750×480	400	50-120	60-120	55
DHKS3624	920×600	510	65-130	88-170	75
DHKS4230	1060×750	640	65-200	90-310	110
DHKS4836	1220×910	770	90-250	200-500	160
DHKS5112	1300×300	240	20-90	18-110	75
DHKS6016	1500×400	320	25-90	60-200	90

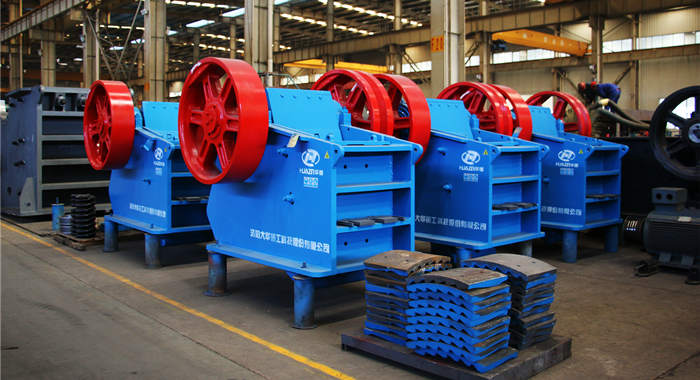

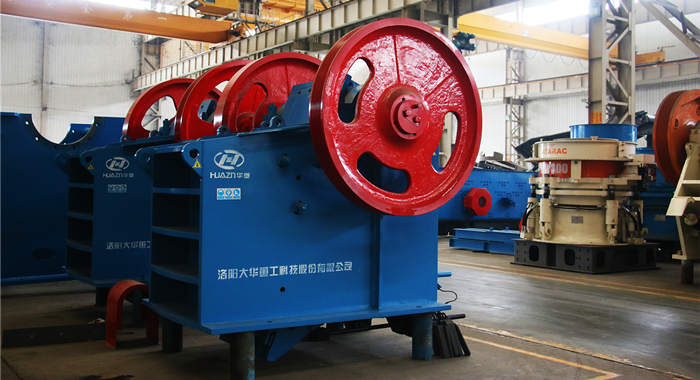

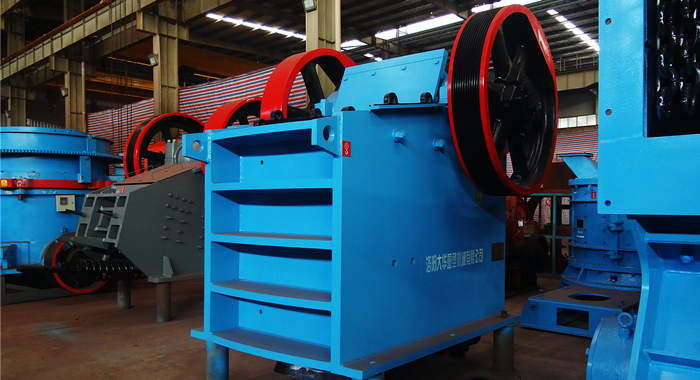

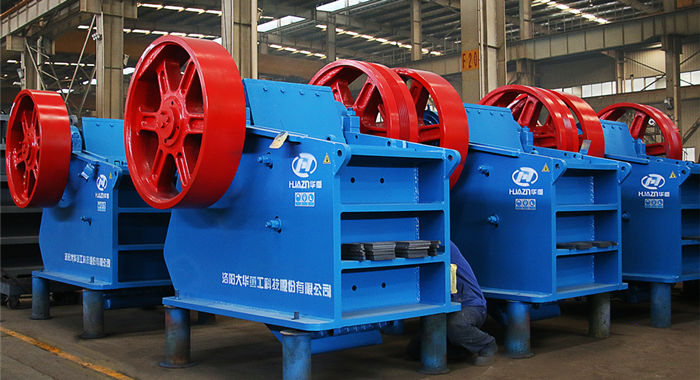

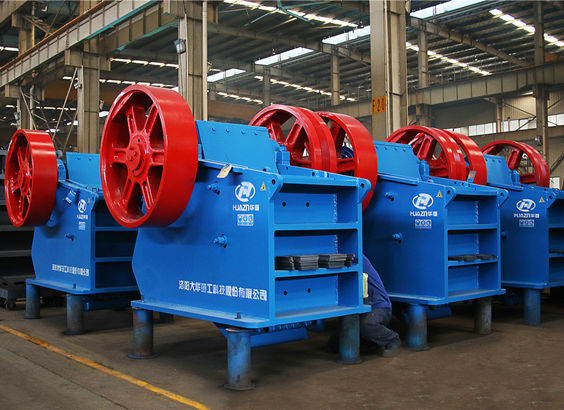

Machine Photo

jaw crusher price

jaw crusher machines

stone crushers

mining jaw crusher

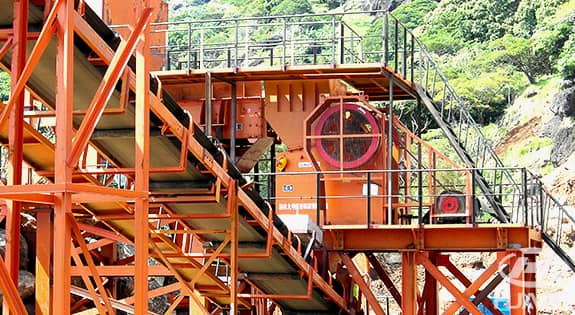

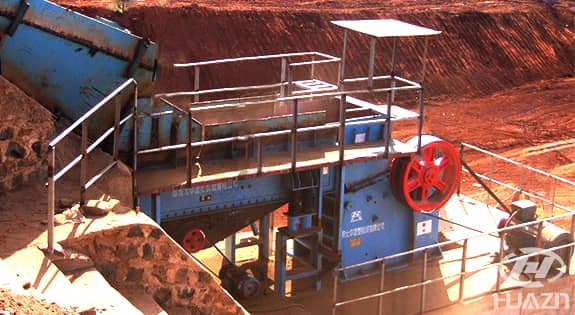

Customer Cases

National Highway Construction Project in Fiji.

The main equipment: DHKS4230 jaw crusher, PFQ1315 impact crusher, PLS sand making machine, 3YKR2460 vibrating screen, ZSW 490 X 110 grizzly bar vibrating feeder.
