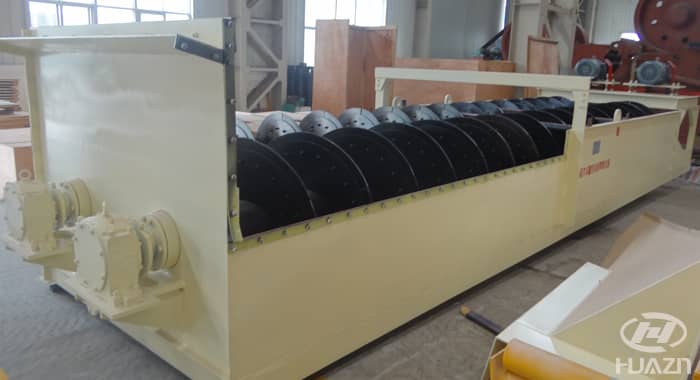

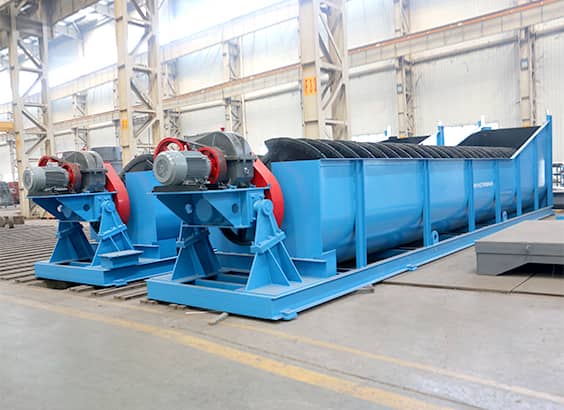

XL Series Spiral Sand Washer

Spiral Diameter: 508-1118（mm）

Feed Size: 10-75（mm）

Processing Capacity: 20-300（t/h）

Application Fields: metallurgy, construction material, hydropower

Applied Material: fine and coarse grain

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

XL Series Spiral Sand Washer is an efficient desliming, sand washing and stone washing equipment, which is widely used for sand and aggregate washing,grading, removing impurity in highway, railway, construction, building materials, water and electricity industries and so on.According to the amount of washing materials, XL spiral sand washer can be divided into two kinds of structure, single spiral and double spiral. It also can be divided into two kinds, light and heavy, according to the product size of washing materials.

Light spiral sand washer is suitable for washing and screening of fine materials,which is less than 10 mm. Heavy spiral sand washer is suitable for coarse materials, which is more than 10 mm less than 80 mm.

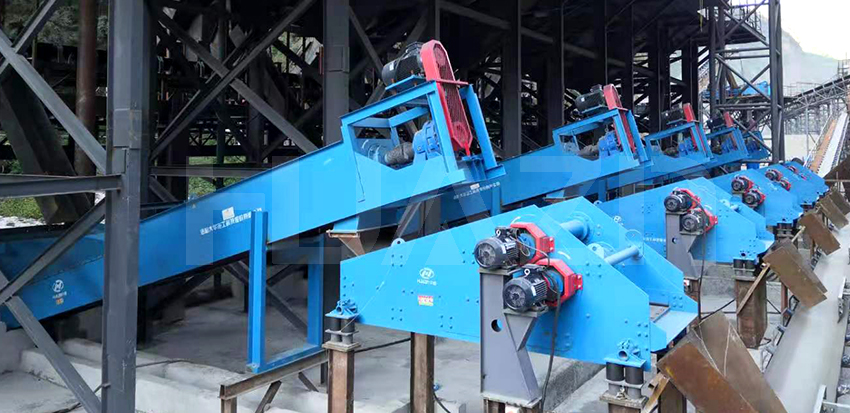

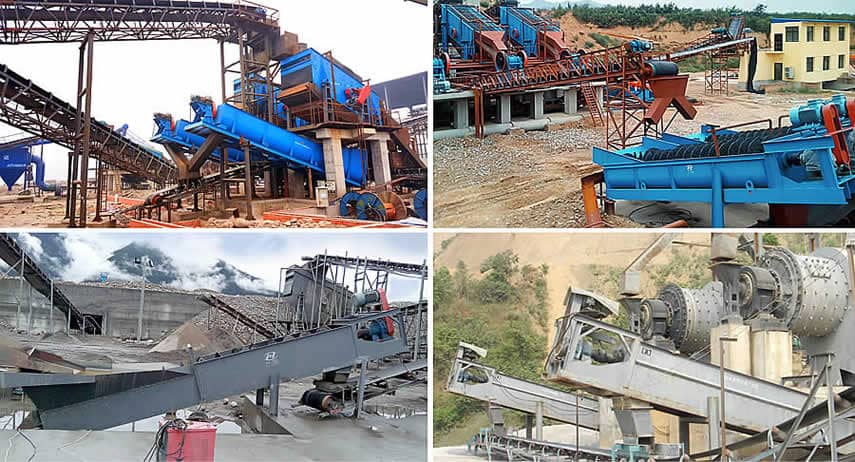

Screw Sand Washing Machine has three functions: washing, dewatering, classifying and is loved by the majority of customers, and has been successfully widely used in construction sites, gravel plants, hydropower stations, concrete dam site glass industry, and other places using sands.

Features

1. Adjustable wide overflow weir structure makes desliming, dehydration, removing impurity and sand washing more efficient.

2. The machine are equipped with reliable driving and transmission device, special underwater seal structure of the rotary part, which ensure running stable.

3. The spiral blades are made of wear-resistant materials, which ensure working continuity and reduce the running cost.

Parameter

Type	Model	Spiral diameter (mm)	Feed size (mm)	Water Consumption（t/h）	Capacity（t/h）	Power（kw）	Dimension（mm）
Light single spiral	XL-508	508	<10	6-60	-20	7.5	8585×2347×1615
	XL-610	610	<10	6-63	-50	7.5	8166×2480×1720
	XL-762	762	<10	9-63	-75	15	9070×2650×1870
	XL-914	914	<10	10-90	-100	15	9310×2830×2360
	XL-1118	1118	<10	20-160	-175	22	11830×3048×2230
Light double spiral	2XL-762	762	<10	20-150	-140	2×15	9178×3625×1808
	2XL-762	762	<10	20-150	-140	2×15	9178×3625×1808
	2XL-914	914	<10	130-180	-200	2×15	9310×3870×2134
	2XL-1118	1118	<10	60-600	-350	2×22	11830×4170×2230
Heavy single spiral	XLZ-762	762	<60	160-220	-125	30	7775×1290×2034


	XLZ-914	914	<60	200-300	-175	37	8324×1382×2112
	XLZ-1118	1118	<75	500-750	-250	37	8703×1681×2176
Heavy double spiral	2XLZ-762	762	<60	300-400	-150	2×30	7775×2090×2068
	2XLZ-762	762	<60	300-400	-150	2×30	7775×2090×2068
	2XLZ-914	914	<60	350-450	-200	2×30	8324×2336×2112
	2XLZ-1118	1118	<75	900-1100	-300	2×37	8703×2861×2150
