Mobile Impact Crushing Plant
Description
CMC series track-mounted mobile impact crushing plants are utilized for crushing materials in the secondary and tertiary stages. For processing medium hard materials, the configuration form of "a feeder + an impact crusher+ a screen" is mostly adopted. It adopts a heavy-duty rotor body structure, a large volume crushing cavity, anti-wear alloy blow bars, heavy-duty impact-resistant impact lining plates, and a multi-point hydraulic adjustment and hydraulic opening device, ensuring super crushing capacity, crushing effect, large feed size, smaller discharge size, a high crushing ratio, and good product shape.
Features
1. The standard modular cavity body lining plates, and the tooth-shaped impact plates are interchangeable, with a higher utilization rate and a longer service life.
2. The discharge gap of the equipment can be flexibly adjusted according to the end product particle size and gradation requirements.
3. The unique three-cavity vortex structure makes feed size larger, capacity larger and product shape better.
4. The hydraulic opening and closing devices (Standard) or the specially used lifting tools (Optional) for replacement of blow bars, can provide flexible application and operation convenience.
5. It is easy to be transported directly between different working sites.
6. The configuration is reasonable, the technical process smooth, the production efficiency high, and the product shape good.
7. It can be utilized jointly with other mobile crushing plants and mobile screening plants.
Parameter
| Equipment Model | CMC1310 | CMC1214 | ||
| Feed Hopper | Feed Capacity(t/h) | 150-300 | 150-300 | |
| Feed Hopper Volume(m³) | 4.5 | 4.5 | ||
| Feed Equipment | Model(Width mm * Length mm) | ZSW 400 * 110 | ZSW 400 * 110 | |
| Feed Height(mm) | 4010 | 4010 | ||
| Power(kW) | 15 | 15 | ||
| Crushing Equipment | Impact Crusher | PFY1310 | PFY1214 | |
| Feed Opening Width(mm) | 1000 | 1450 | ||
| Max Feed Size(mm) | 265 | 304 | ||
| Discharge Size(mm) | 30-45 | 35-45 | ||
| Capacity(t/h) | 165-200 | 220-260/300 | ||
| Power(kW) | 160 | 220/250 | ||
| Main Belt Conveyor | Model(W mm * L mm * Power kW) | 1000 * 8100 * 11 | 1000 * 8100 * 11 | |
| Discharge Belt Conveyor | Model(W mm * L mm * Power kW) | 1200 * 6400 * 11 | 1200 * 6400 * 11 | |
| Transit Belt Conveyor | Model(W mm * L mm * Power kW) | 500 * 2650 * 4 | 500 * 2650 * 4 | |
| Material Return Belt Conveyor | Model(W mm * L mm * Power kW) | 500 * 8700 * 5.5 | 500 * 8700 * 5.5 | |
| Soil Removal Side Belt Conveyor | Model(W mm * L mm * Power kW) | 650 * 4380 * 4 | 650 * 4380 * 4 | |
| Vibrating Screen | Model(W mm * L mm * Power kW) | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | |
| Self-Dumping Magnetic Separator | Model * Power(kW) | RCYQ1000 * 2.2 | RCYQ1000 * 2.2 | |
| Track Chassis | Walking Mode | Track-Mounted | Track- Mounted | |
| Walking Speed(km/h) | 0.8 | 0.8 | ||
| Max Climbing Angle | 20° | 20° | ||
| Integrated Machine | Driving Mode(Optional as requested) | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | |
| Omni-Hydraulic Driving | Omni-Hydraulic Driving | |||
| Engine | Model | CUMMINS | CUMMINS | |
| Power(kW) | 200-500 | 200-500 | ||
| Rotation Speed(r/min) | 1900 | 1900 | ||
| Total Weight(kg) | 45100/53700 | 43295/51795 | ||
| Transport Dimensions: L * W * H(mm) | 17150 * 3119 * 3800 | 17150 * 3119 * 3800 | ||
| Working Dimensions: L * W * H(mm) | 18130 * 3560 * 4965 | 18130 * 3560 * 4965 | ||
Note:
① The processing capacity of the crushing equipment is related to material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.

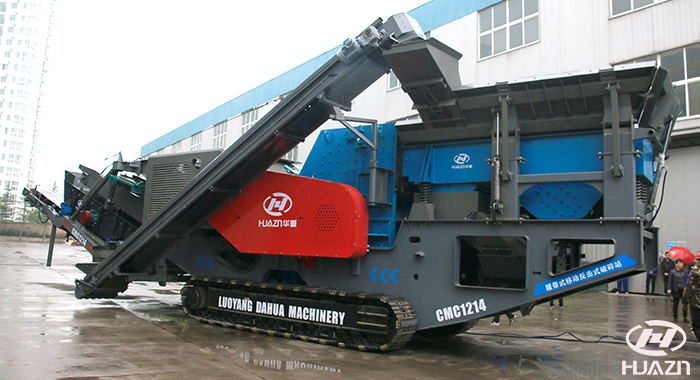

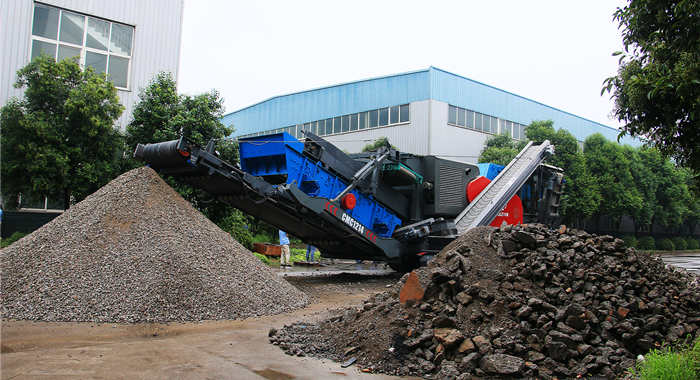

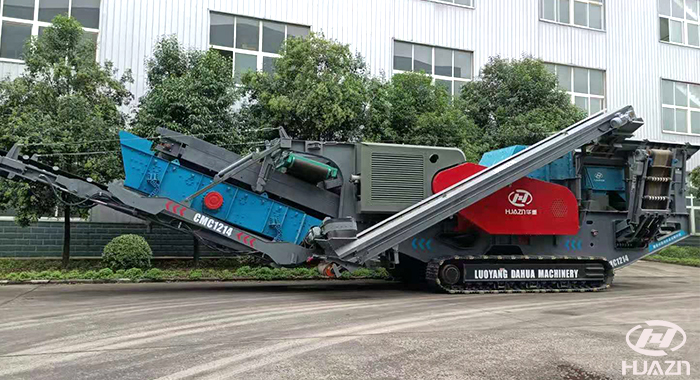

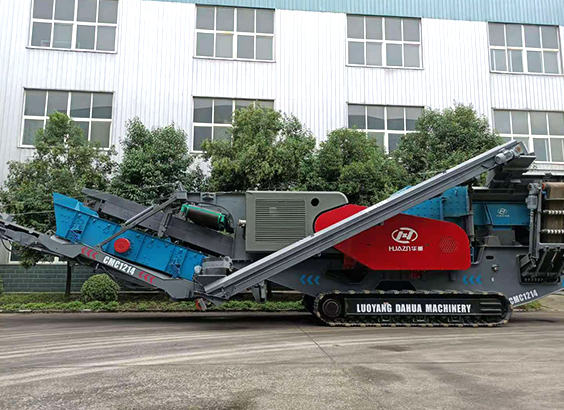

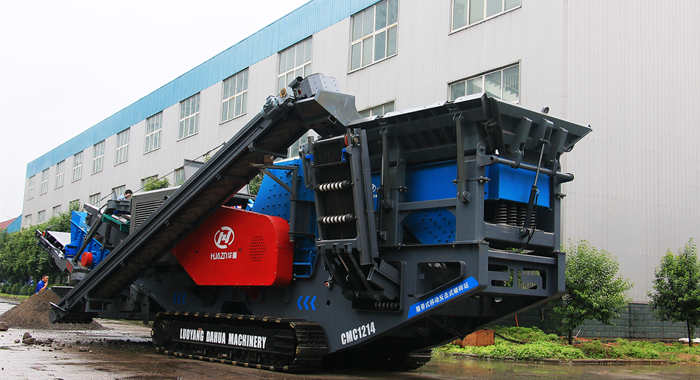

Machine Photo
