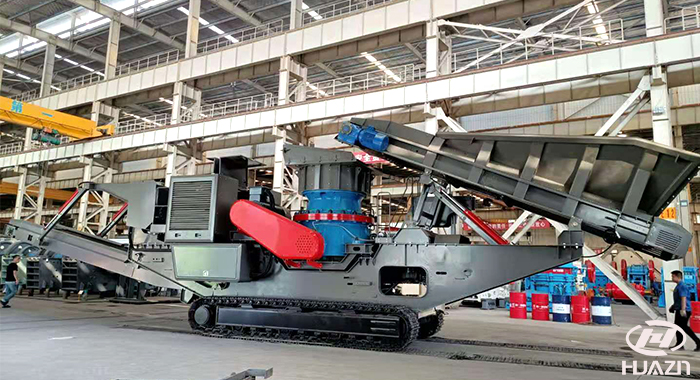

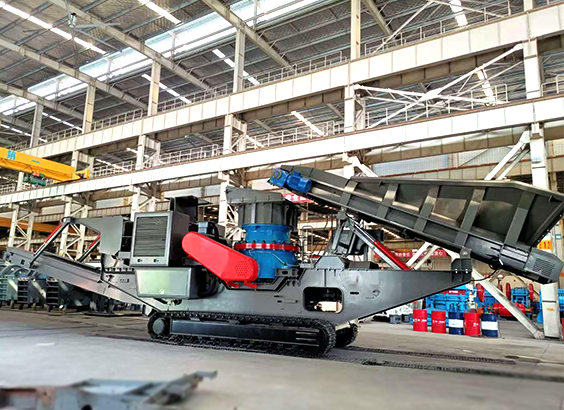

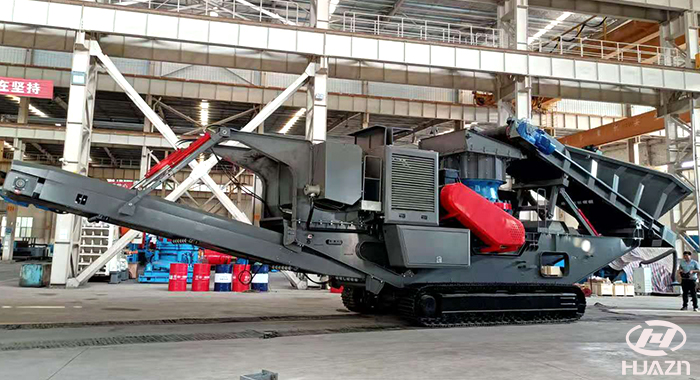

Track-Mounted Mobile Cone Crushing Plant

Mobile Cone Crushing Plant

Crushing Ability: secondary crushing, fine crushing

Max. Feeding Size: 60-304 mm

Application Fields: highway, high speed railway, mining, construction, metallurgy

Applied Material: various kinds of rock and ore, bituminous concrete.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

Track-mounted mobile cone crushing plants are utilized for crushing materials in the secondary and tertiary stages. For processing hard rocks, the configuration form of "a cone crusher + a screening machine" is mostly adopted. It adopts the high-strength casting steel frame, the alloy material forged main shaft, the high-precision arc-shaped spiral gear transmission structure, combining with a variety of chamber type options and the intelligent operation control system, which thus perfectly embodies its performance and advantages.

Features

1. Equipped with a cone crusher which has excellent performance, it is suitable for crushing in the secondary and tertiary stages.

2. It is easy to be transported directly between different working sites.

3. It boasts reasonable configuration, a smooth technical process, high production efficiency, and good product shape.

4. It can be utilized jointly with other mobile crushing plants and mobile screening plants.

Parameter

Equipment Model			CMC200GS	CMC200G	CMC300GS	CMC300G	CMC300H
Feed Hopper	Feed Capacity(t/h)		150-390	150-390	150-390	150-390	150-390
Feed Hopper	Feed Hopper Volume(m³)		6.3	6.3	6.3	6.3	6.3
Feed Belt Conveyor	Model(W mm * L mm)		B=1200 L=6100	B=1200 L=6100	B=1200 L=6100	B=1200 L=6100	B=1200 L=6100
	Feed Height(mm)		3730	3730	3730	3730	3730
	Power(kW)		18.5	18.5	18.5	18.5	18.5
Crushing Equipment	Cone Crusher		GPY200S	GPY200	GPY300S	GPY300	HPY300
	Feed Opening Width(mm)		330	70-210	380	60-260	107-233
	Max Feed Size(mm)		265	60-165	304	50-210	85-185
	Discharge Size(mm)		35-45	15-25	40-45	10-30	6-45
	Capacity(t/h)		225-345	135-215	440-520	140-345	75-430
	Power(kW)		160	160	250	250	220
Main Belt Conveyor	(W mm * L mm * Power kW)		1000 * 130000 * 15	1000 * 130000 * 15	1000 * 130000 * 15	1000 * 130000 * 15	1000 * 130000 * 15
Discharge Belt Conveyor	(W mm * L mm * Power kW)		1200 * 6400 * 11	1200 * 6400 * 11	1200 * 6400 * 11	1200 * 6400 * 11	1200 * 6400 * 11
Transit Belt Conveyor	(W mm * L mm * Power kW)		500 * 2650 * 4	500 * 2650 * 4	500 * 2650 * 4	500 * 2650 * 4	500 * 2650 * 4
Material Return Belt Conveyor	(W mm * L mm * Power kW)		500 * 9000 * 5.5	500 * 9000 * 5.5	500 * 9000 * 5.5	500 * 9000 * 5.5	500 * 9000 * 5.5
Screen	(W mm * L mm * Power kW)		1500 * 3600 * 7.4	1500 * 3600 * 7.4	1500 * 3600 * 7.4	1500 * 3600 * 7.4	1500 * 3600 * 7.4
Self-Dumping Magnetic Separator	Model * Power(kW)		RCYQ 1000 * 2.2	RCYQ 1000 * 2.2	RCYQ 1000 * 2.2	RCYQ 1000 * 2.2	RCYQ 1000 * 2.2
Track Chassis	Walking Mode		Track-Mounted	Track-Mounted	Track-Mounted	Track-Mounted	Track-Mounted
	Walking Speed(km/h)		0.8	0.8	0.8	0.8	0.8
	Max Climbing Angle		20°	20°	20°	20°	20°
Integrated Machine	Driving Mode(Optional as requested)		Hydraulic Driving / Grid Power Driving	Hydraulic Driving / Grid Power Driving	Hydraulic Driving / Grid Power Driving	Hydraulic Driving / Grid Power Driving	Hydraulic Driving / Grid Power Driving
	Driving Mode(Optional as requested)		Omni-Hydraulic Driving	Omni-Hydraulic Driving	Omni-Hydraulic Driving	Omni-Hydraulic Driving	Omni-Hydraulic Driving
	Engine	Model	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS
		Rated Power(kW)	200-500	200-500	200-500	200-500	200-500
		Rated Rotation Speed(r/min)	1800	1800	1800	1800	1800
	Total Weight(kg)		45100/53700	43295/51795	54290/63890	52190/61000	53200/62700
	Transport Dimensions: L * W * H(mm)		17150 * 3119 * 3800	17150 * 3119 * 3800	17150 * 3119 * 3800	17150 * 3119 * 3800	17150 * 3119 * 3800
	Working Dimensions: L * W * H(mm)		18130 * 3560 * 4965	18130 * 3560 * 4965	18940 * 3560 * 4706	18940 * 3560 * 4706	18940 * 3560 * 4706

Note:
① The processing capacity of the crushing equipment is related to material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.
