Mobile Crusher
Processing Capacity: 60-500 tph
Max Feeding Size: 350-800mm
Output Size: 0-40 mm
Processing Material: various kinds of stone and ore, bituminous concrete.
Crushing Ability: primary crushing, secondary crushing, fine crushing
Application Fields: highway, high speed railway, mining, construction, metallurgy
Description
Mobile crusher is a kind of movable crushing equipment,which integrates crushing, screening and feeding operation on one machine.It is widely used to process stones, ores and other minerals, such as andesite, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal ,etc.
Due to its high production efficiency and competitive price, mobile crusher is hot sale in mining, quarry, construction and other industries. It is especially suitable for medium and large sized production.
Mobile crusher can be configurated with generator unit to guarantee the normal production under electroless or power outage to ensure continuous production.According to your needs, either single-unit operation or multi-units operation will be provided combined to the production site condition. Thereby, it can realize single-unit crushing, multi-unit screening & crushing.

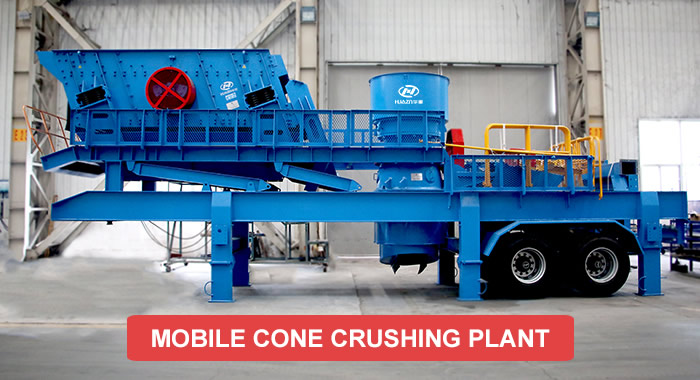

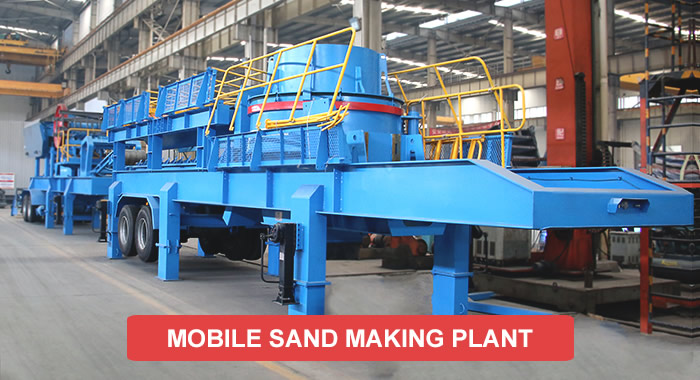

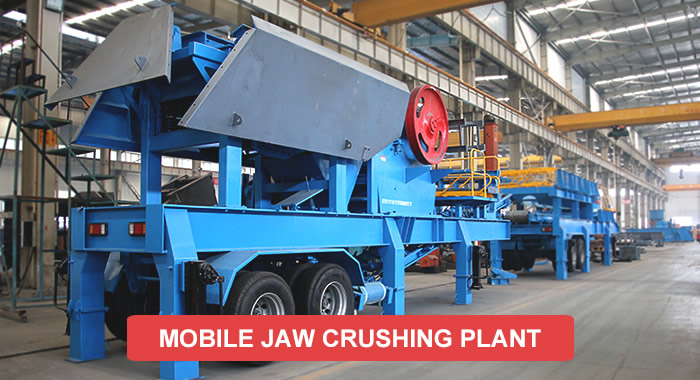

★According to the specific crusher model, hot sale mobile crusher types include mobile jaw crusher, mobile impact crusher, mobile cone crusher and mobile sand making machine.
Features
1.High production capacity
Modular design, unit integration, low requirement to production site.
2.High Mobility and Flexibility
Flexible product configuration, move to the production site directly.
3.High Crushing Efficiency
Compact structure, saving transportation time and costs.
4.Reliable operation and easy maintenance
Professional design, strict quality control system guarantee the product quality.
Parameter
| Basic Configuration | YD-60 | YD-120 | YD-150 | YD-200 | YD-300 | YD-500 | ||
| Granuality（mm） | 0-40 | |||||||
| Capacity（t/h） | 60-80 | 80-120 | 120-150 | 150-200 | 200-350 | 300-500 | ||
| Primary Crushing | Feeder | ZSW300×85 | ZSW380×95 | ZSW420×110 | ZSW450×120 | ZSW500×130 | ZSW500×130 | |
| Primary Crusher | JC80 | JC96 | JC106 | JC116 | JC126 | JC130 | ||
| Secondary Crushing | Vibrating Screen | 3YA1545 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR3060 | |
| Secondary Crusher | medium hard | PFQ1110 | PFQ1310 | PFQ1313 | PFQ1315 | PFQ1320 | PFQ1520 | |
| special hard | GPY100-MF | GPY100-EC | GPY100S | GPY200S | GPY200S | GPY300S | ||
| Fine Crushing | Vibrating Screen | 3YA1536 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR2475 | |
| Sand Maker | PLS-700 | PLS-850 | PLS-850 | PLS-1000 | PLS-1200 | PLS-1200 | ||
| Auxiliary Equipment | conveyor, hydraulic leg, de-ironing separator, electrical apparatus control system, etc. | |||||||

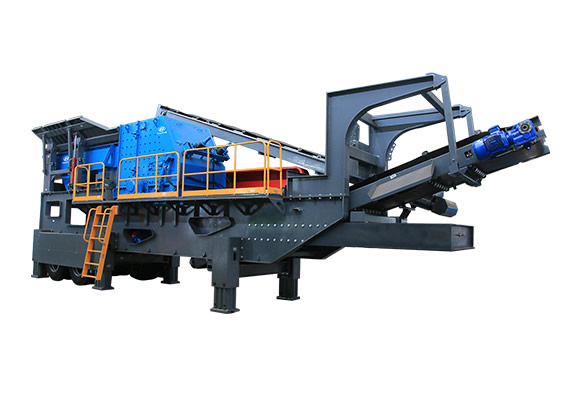

Machine Photo
Customer Cases
400 TPH Mobile crushing plant for highway construction in Malaysia
The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
150t/h Mobile Crushing Plant For Building Roads In Ethiopia
ZSW490*110 vibrating feeder, DHKS4230 jaw crusher, GPY200S cone crusher, 3YKR2160 vibrating screen.
