Equipment Configuration of 300T/H Sand Making Plant
author:dahua2 time:2024-07-09
The equipment required for a 300t/h sand making plant mainly includes the following categories:
1. Feeding equipment

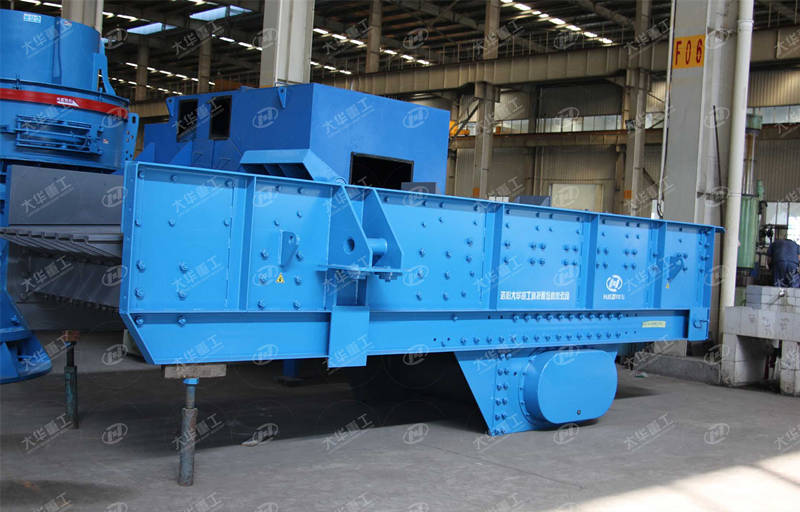

Vibrating feeder: such as ZSW1100*4200 vibrating feeder, used to feed raw materials into the crusher evenly and continuously to ensure the stable operation of the production line. The vibrating feeder can also pre-screen the material while feeding, which plays a role in removing soil.
![vibrating feeder](https://www.lydhcrusher.com/upload/images/vibrating_feeder(1).jpg)
2. Crushing equipment
Jaw crusher: such as PE600*900 jaw crusher or JC106 European version jaw crusher, used for preliminary crushing of raw materials and breaking large pieces of material into smaller particles. Jaw crusher has the characteristics of simple structure, easy maintenance and large crushing ratio.
![jaw crusher for sand making plant](https://www.lydhcrusher.com/upload/images/jaw_crusher_for_sand_making_plant.jpg)
Impact crusher: such as PFY1214 impact crusher or PFQ1315Ⅲ impact crusher, used for secondary crushing of materials after preliminary crushing to further improve the crushing degree of materials. Impact crusher has the advantages of high crushing efficiency and uniform product particle size.
![impact cusher for sand making plant](https://www.lydhcrusher.com/upload/images/impact_crusher_for_sand_making_plant.jpg)
Vertical Shaft Impact Crusher: Such as VPLS850 vertical shaft impact crusher, used to achieve fine crushing and sand making of materials, and produce sand and gravel particles that meet the requirements. Vertical shaft impact crusher has the characteristics of strong crushing ability and good finished product particle shape.
![sand crusher for sand making plant](https://www.lydhcrusher.com/upload/images/sand_crusher_for_sand_making_plant.jpg)
3. Screening Equipment
Vibrating Screen: Such as 2YK1545 Vibrating Screen, 4YK1548 Vibrating Screen, etc., used to screen the crushed materials and separate particles of different sizes to obtain sand and gravel products that meet the requirements. Vibrating Screen has the characteristics of high screening efficiency and high screening accuracy.
![vibrating screener for sand making plant](https://www.lydhcrusher.com/upload/images/vibrating_screener_for_sand_making_plant.jpg)
4. Sand Washing Equipment

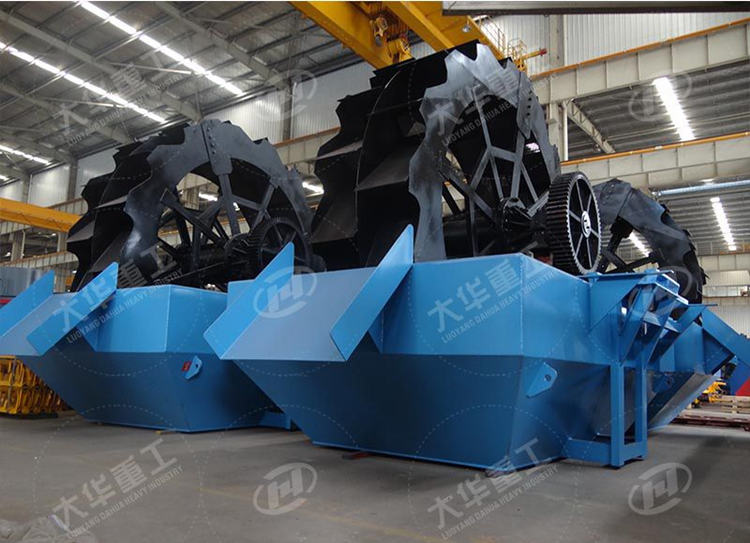

Sand Washer: Such as DXS3.8 Sand Washer, used to clean the screened sand and gravel particles, remove the soil, impurities and powder, etc., to make the sand and gravel particles purer. The sand washer flushes the sand and gravel particles with water flow to achieve the purpose of cleaning.
![sand washer for sand making plant](https://www.lydhcrusher.com/upload/images/sand_washer_for_sand_making_plant(1).jpg)
5. Auxiliary equipment
Belt conveyor: used to transport materials between various equipment to realize the automation and continuous production of the production line. The number and length of the belt conveyor need to be determined according to the actual situation of the work site.
In summary, sand making plant with an output of 300 tons per hour needs to be equipped with equipment such as vibrating feeder, jaw crusher, impact crusher, vertical shaft impact crusher, vibrating screen, sand washer and belt conveyor. These equipment cooperate with each other to complete the crushing, screening and cleaning of sand and gravel, and produce sand and gravel products that meet the requirements. It should be noted that the specific equipment configuration and model selection need to be comprehensively considered according to factors such as the nature of the raw materials, production scale and finished product requirements.
