Coarse crushing equipment:

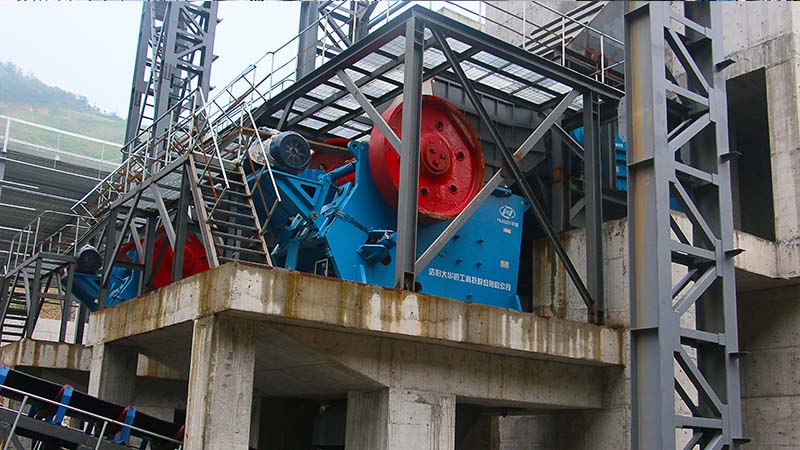

Jaw crusher: As the first crushing equipment on m-sand production line, jaw crusher is widely used because of its simple structure, convenient operation and large crushing ratio. It can effectively crush large pieces of material into smaller particles, providing suitable raw materials for subsequent crushing.

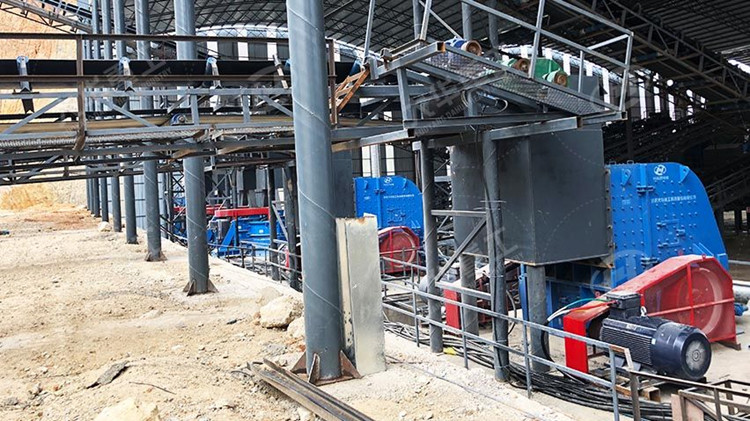

Impact crusher: In some cases, if the raw material properties are suitable and require higher crushing efficiency and better particle shape, impact crusher can also be selected as coarse crushing equipment. It uses impact energy to crush materials, and the particle shape of the crushed materials is better.

Fine crushing equipment:

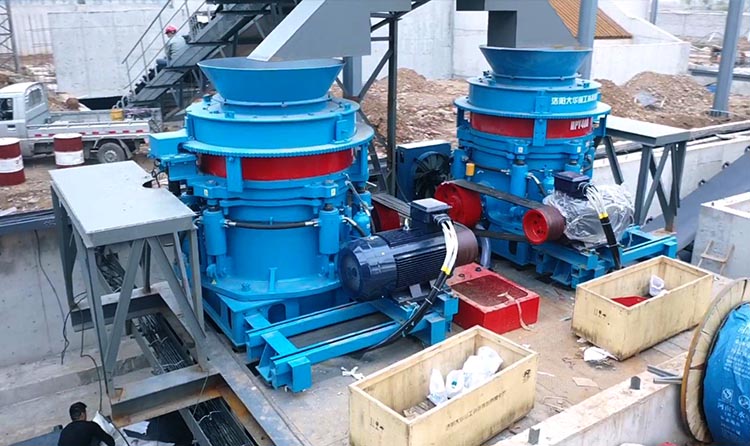

Cone crusher: Suitable for processing materials of medium hardness and above. Its crushing principle is to crush materials through extrusion between the moving cone and the fixed cone. Cone crusher has the advantages of large crushing ratio, uniform product particle size and low energy consumption.

Sand making equipment:

Professional sand making machine (such as vertical shaft impact crusher) is one of the core equipment of the machine-made sand production line. It can further crush the finely crushed materials, and process the materials into sand particles that meet the requirements through comprehensive effects such as impact, shearing and grinding. The selection of sand making machine should be determined according to the properties of the raw materials, the particle size and particle shape requirements of the finished sand.

Sand washing equipment:

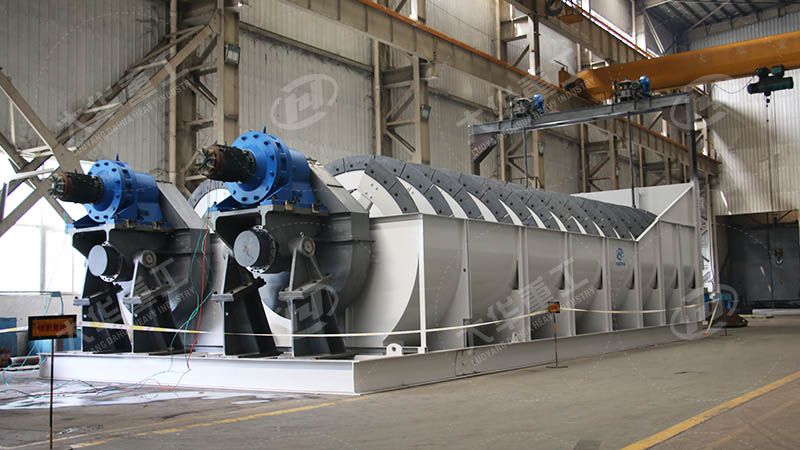

Sand washing machine: Sand washing machine is mainly used to clean impurities such as soil and stone powder in machine-made sand to improve the cleanliness and quality of sand. Common sand washing machines include wheel bucket sand washing machine, spiral sand washing machine, etc. Sand washing machine removes impurities in machine-made sand through the flushing effect of water flow, making the finished sand cleaner.

In summary, the construction of a complete m-sand production line requires comprehensive consideration of factors such as raw material properties, production scale, particle size and particle shape requirements of finished sand, and reasonable configuration of coarse crushing, fine crushing, sand making and sand washing equipment. At the same time, attention should also be paid to the maintenance of equipment and the implementation of environmental protection measures to ensure the stable operation of the production line and the high quality and efficiency of products.
