PFL Vertical Compound Crusher

Discharge granularity: ≤3,70-90%

Processing Capacity: 8-120（t/h）

Application Fields: it is mainly used in small and medium cement plant.

Applied material: medium soft iron ore, sandstone, blast furnace slag, coal gangue, lump coal, metallurgy solvent, etc.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: lydhcrusher@huazn.com

Description

PFL Series Vertical Compound Crusher is developed by our company which based on absorbing the international advanced technology and applying company's decades practical experience. It is optimized to be a new type fine crushing, coarse grinding crusher, which apply the crushing mechanism of impact and grinding at the same time. PFL vertical complex crusher is ideal equipment for fine crushing in cement plant, which can realize more crushing and less grinding, decrease the consumption of the energy. It is widely used for crushing cement raw material and clinker, also can be widely used for solvents and raw materials fine crushing in metallurgical industry and various hard mineral crushing processing in other construction, building materials, chemical industry and some other fields.

Features

1. Simple structure, high throughput, high crushing ratio, high rate of final product, low energy consumption.

2. The hammer and liner apply wear resistant complex alloy material, which is of high hardness and high toughness. So the service life of them is long.

3. Good sealing performance, little dust pollution, low noise, stable running, convenient operation and maintenance.

4. According to the needs of customers, the main gear can be designed at the top of the machine or at the bottom.

Working Principle

After the material fall into the crushing chamber, firstly will be thrown towards the reaction liner by feed tray at high speed, then fall into the sapce between the hammerhead and reaction liner. The material will become smaller from the big size by heating, crushing , grinding of hammerhead, and finally, crushed into small granule and discharged from the crusher.

Parameter

Model	Max. Feed Size（mm）	Discharge Size（mm）	Mainshaft Speed(r/min)	Capacity(t/h）	Power（kw）
PFL-750Ⅲ	≤100	≤3,70-90%	800-1350	8 -20	45
PFL-1000Ⅲ	≤120	≤3,70-90%	650-980	15-30	55
PFL-1250Ⅲ	≤150	≤3,70-90%	510-770	30-45	90
PFL-1500Ⅲ	≤180	≤3,70-90%	430-640	50-70	132
PFL-1750Ⅲ	≤200	≤3,70-90%	420-540	70-100	160
PFL-2000Ⅲ	≤220	≤3,70-90%	360-500	90-120	200
PFL-2300Ⅲ	≤240	≤3,70-90%	330-450	120-160	250
PFL-2500Ⅲ	≤240	≤3,70-90%	300-420	160-200	355

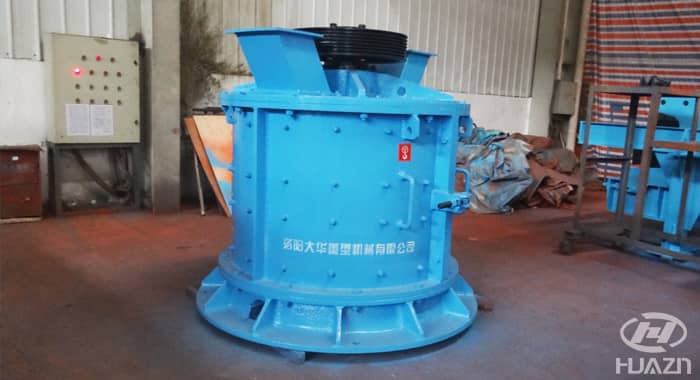

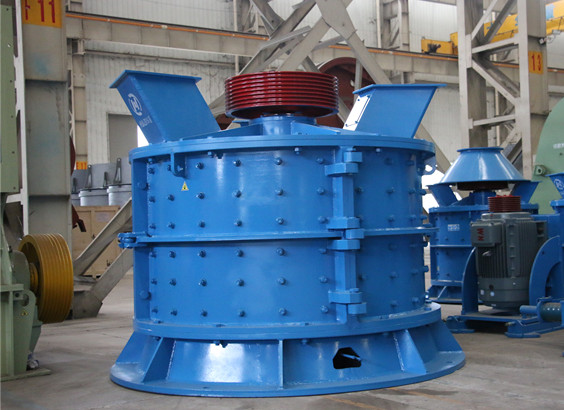

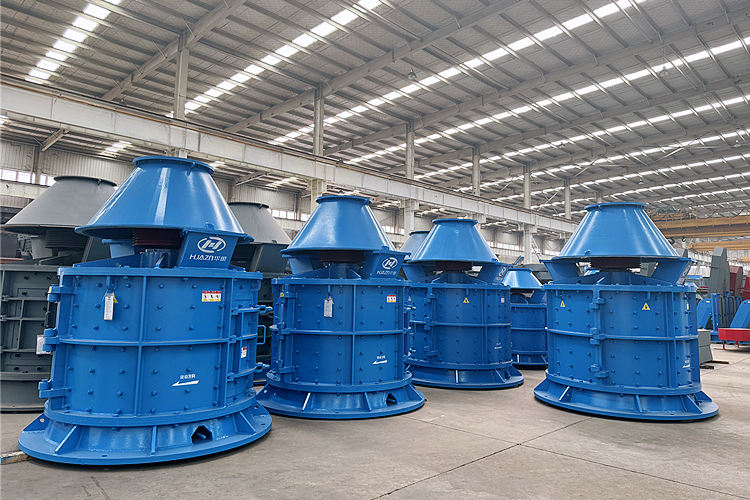

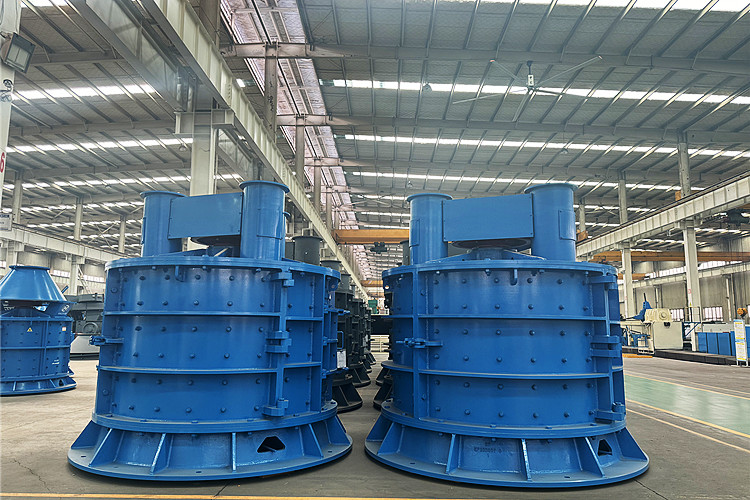

Machine Photo

pfl complex crusher 1

pfl complex crusher 2

Customer Cases

600t/h aggregates production at Yunnan Province, China.

The main equipment: ZSW1360 vibrating feeder, PFQ1315 impact crusher, C1210 jaw crusher, PFL2300Ⅲ vertical complex crusher, 4YK2475 vibrating screen.

2000t/h Limestone Production at Mengzi Country, Yunnan Province.

The main equipment: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen
