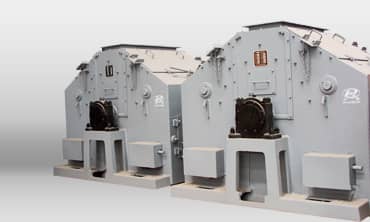

PFCK Reversible Impact Hammer Crusher
Feed Size: 70-120mm
Processing Capacity: 50-760(t/h)
Application Fields: construction, metallurgy, chemical industry, coal gangue.
Applied Material: limestone, coke, dolomite, serpentine.
Description
PFCK series reversible impact hammer crusher is developed and designed by our company, this series product is mainly applied to crushing coal, gangue and other fuels in power plants, and also is used in processing medium hardness material in metallurgy, chemistry industry, e.g. carbon, limestone, and artificial aggregate.
Features
1. Adoption of greater rotor, short hinge pin, combined type of hammer and synchronous control device.
2. In addition, a wear-resistant toothed plate was mounted to the feeding entrance to enhance the strike force and service life of wearing parts.
3. The joint of hammer is equipped with stiffener and the hammer 's striking side is widened, which greatly increase its strength, firmness, service life as well as safety.
4. The lubrication for bearings is directly provided by hydraulic pressure station instead of manual supply, which lowers the labor intensity of workers.
Parameter
|
Specification
|
Feed Size
（mm）
|
Final Product Size
(mm)
|
Capacity
(t/h)
|
Power
(kw)
|
Weight
(kg)
|
|
PFCK0808
|
-70
|
-8mm 99%
-3mm 90%
|
-50
|
-90
|
4900
|
|
PFCK1008
|
-70
|
-65
|
-110
|
8700
|
|
|
PFCK1010
|
-80
|
-80
|
-132
|
9800
|
|
|
PFCK1012
|
-80
|
-100
|
-160
|
10900
|
|
|
PFCK1015
|
-80
|
-200
|
-315
|
13600
|
|
|
PFCK1018
|
-80
|
-290
|
-450
|
17700
|
|
|
PFCK1022
|
-80
|
-350
|
-630
|
23200
|
|
|
PFCK1209
|
-80
|
-120
|
220-315
|
16000
|
|
|
PFCK1212
|
-80
|
-180
|
-335
|
19000
|
|
|
PFCK1215
|
-80
|
-220
|
-400
|
22000
|
|
|
PFCK1316
|
-80
|
-300
|
-450
|
28850
|
|
|
PFCK1415
|
-100
|
250-400
|
380-550
|
26400
|
|
|
PFCK1418
|
-100
|
300-500
|
450-630
|
33000
|
|
|
PFCK1512
|
-100
|
240-300
|
335-450
|
24900
|
|
|
PFCK1608
|
-100
|
80-120
|
-220
|
23200
|
|
|
PFCK1612
|
-100
|
130-180
|
-335
|
29700
|
|
|
PFCK1616
|
-100
|
200-300
|
450-560
|
32600
|
|
|
PFCK1618
|
-100
|
300-400
|
560-710
|
37000
|
|
|
PFCK1818
|
-120
|
400-450
|
710-800
|
45600
|
|
|
PFCK1822
|
-120
|
450-600
|
800-1000
|
53000
|
|
|
PFCK1825
|
-120
|
600-760
|
1000-1250
|
60000
|
