1000t/h limestone or dolomite aggregate production line

Description:

This technique with 1000t/h capacity is capable for processing and crushing of hard materials such as limestone or dolomite. The bulk raw material gain from blasting or hole digging is feed into raw material warehouse by dump truck, then sent into jaw crusher by bar feeder with pre screening function. The processed material then sent into cone crusher through belt conveyor for secondary fine crushing. The crushed material sent into first screening workshop for grading screening. The larger particles would be sent back to cone crusher for re-crushing and the particle size that meet the clients’ needs would convey into processed material warehouse.

Sand washing machine could be added into the system for fine sand cleaning due to the project requirement. The bar feeder with pre screening function could separate the fine particle initially and send them into crusher and soil debris into the waste.

Advantages:

Simple technique, small area required, high crush rate, high production efficiency, high production capacity, well particle shape, well particle grade allocation, could satisfy the requirement of aggregate in several conditions of construction industry.

Related equipment

Luoyang Dahua Heavy Industry Science & Technology Co., Ltd.

C series jaw crusher

Luoyang Dahua Heavy Industry Science & Technology Co., Ltd.

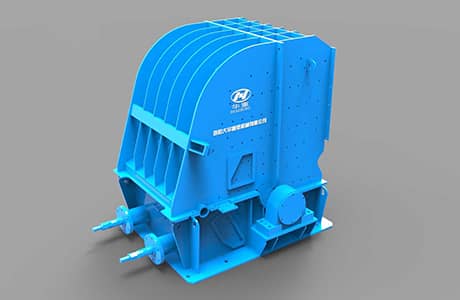

PFQ series vortex impact crusher

Luoyang Dahua Heavy Industry Science & Technology Co., Ltd.

PLS series vertical impact crusher

Luoyang Dahua Heavy Industry Science & Technology Co., Ltd.

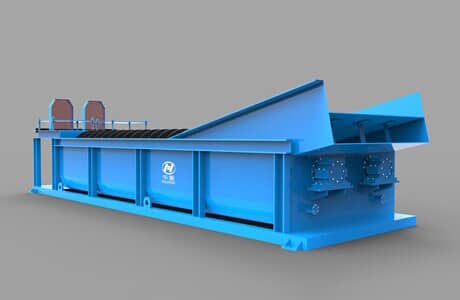

sand washing and processing machine

Configuration

Configuration of 1000t/h limestone or dolomite aggregate production line

No.	Equipment	Model	Unti	Qty
G1	Bar feeder	ZSW600×210	station	1
P1	Jaw crusher	C1815	station	1
P2	Impact crusher	PFQ1520	station	3
S1	Vibrating screen	3YKR2460	station	4
XL1	Sand washing machine	XL1118	station	2
C1	Iron removal machine		station	1
G2	Vibrating feeder	ZG-200	station	2
P3	Sand making machine	PLS-1200	station	2
S2	Vibrating screen	2YK3073	station	2
XL2	Sand washing machine	2XL1118	station	1
C2	Iron removal machine		station	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

Flow diagram

Flow diagram of 1000t/h limestone or dolomite aggregate production line
